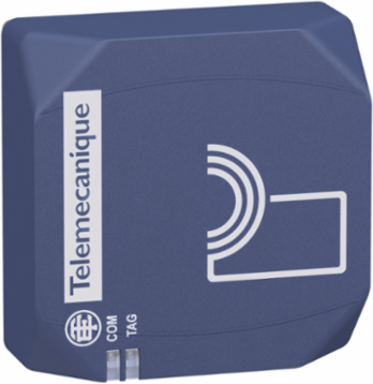

Telemecanique Sensors XGCS491B201 Panel mounting smart antenna, Radio frequency identification XG, Standalone
Telemecanique Sensors XGCS491B201 Panel mounting smart antenna, Radio frequency identification XG, Standalone
- MPN: XGCS491B201
- PPN: TES-XGCS491B201
- UNSPSC: 43211710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1190.55/ EA
Description
This standalone smart antenna is part of the XG range, an offer of RFID readers and tags. RFID, Radio Frequency Identification, refers to radio frequency identification systems, 13.56 MHz. It is mounted on a panel through a standard diameter 22mm hole and manually tightened to secure in place using a single locking nut. The locking nut is supplied with the smart antenna. This smart antenna, with a PNP discrete output, directly controls a relay or a contactor. Depending on the associated tags, its sensing distance is 20mm to 70mm. Its degree of protection is IP65. This antenna operates at ambient air temperature from -40°C to +70°C. It features a compact format of 40mm x 40mm x 40mm, and a M12 connector for the power supply. This smart antenna, with its sleek, clean design with no screws on the front face, is intended for use in industrial environments, particularly in cleaning applications in the medical and food and beverage sectors It complies with EN 301489-1, EN 301489-3, EN 300330-1 and EN 300330-2 standards, and CE, cULus, IC, FCC part 15 certifications. Dedicated electronic tags and accessories, such as network T-connectors and M12 cables, to be ordered separately, are available to facilitate daisy-chain connections. For rapid and efficient access control. Easy to install and configure. Rugged and compact products, with a worldwide compatibility.
Specifications
Environment
- Product Certifications
- CE
- Ambient Air Temperature For Operation
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test 6 kV contact discharge) 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV air discharge) 3 IEC 61000-4-2 || electrical fast transient/burst immunity test 1 kV signal ports) 3 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV power ports) 3 IEC 61000-4-4 || susceptibility to electromagnetic fields 10 V/m3 IEC 61000-4-3 || 1.2/50 µs shock waves immunity test 10 kV3 IEC 61000-4-5 || conducted RF disturbances 10 V3 IEC 61000-4-6 || magnetic field at power frequency 30 A/m4 IEC 61000-4-8
- Vibration Resistance
- 2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6
- Ip Degree Of Protection
- IP65 IEC 60529
Ik Degree Of ProtectionIK02 EN 50102
StandardsETSI EN 301 489-1 || ETSI EN 300 330-1 || ETSI EN 301 489-3 || ETSI EN 300 330-2
Shock Resistance30 gn 11 ms EN 60068-2-27
Ambient Air Temperature For Storage-40-85 °C
Complementary
- Tightening Torque
- < 2.2 N.m
- Discrete Output Function
- 1 NO
- Status Led
- RFID communication 1 LED dual colour) || output state 1 LED dual colour)
- Marking
- CE
- Net Weight
- 0.057 kg
- Supply Voltage Limits
- 19.2-29 V DC
Discrete Output TypePNP
Type Of Output Signaldiscrete
Operating Modestandalone
Associated Tag TypeISO 14443 standard tags || ISO 15693 standard tags || automatic detection of the type of tag
Current Consumption< 60 mA
Switching Capacity In Ma300 mA overload and short-circuit protection)
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060407EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111218EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Range Of Product
- Telemecanique Radio frequency identification XG
- Rfid Frequency
- 13.56 MHz
- Design
- diameter 22 mounting
- Electrical Connection
- 5 1 male connector M12
- Rfid Compact Station Name
- XGCS
Outer Dimension40 x 40 x 40 mm
Product Or Component Typepanel mounting smart antenna
[Sn] Nominal Sensing Distance10-70 mm
Product CompatibilityRFID microchip NXP (Mifare classic 1K/4K) || RFID microchip Texas (Tag-it HFI) || RFID microchip Fujitsu (MB89R118 - MB89R119)
[Us] Rated Supply Voltage24 V DC Protective Extra Low Voltage
