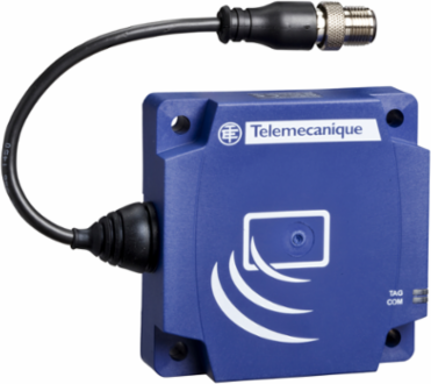

Telemecanique Sensors XGCS8901201 RFID compact smart antenna XG, 13.56 MHz, flat form 80x80x26, format D, RS485, M12 connector, 0.2 m, remote
- MPN: XGCS8901201
- PPN: TES-XGCS8901201
CAD
$1735.45
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
RFID compact smart antenna XG, 13.56 MHz, flat form 80x80x26, format D, RS485, M12 connector, 0.2 m, remote
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Communication port protocol | Modbus RTU Uni-Telway |
|---|---|
| Associated tag type | Automatic detection of the type of tags ISO 14443 standard tags ISO 15693 standard tags |
| Status LED | Communication network: 1 LED (dual colour), RFID communication: 1 LED (dual colour) |
| Marking | CE |
| Communication port support | RS485 |
|---|---|
| Current consumption | < 60 mA |
| Tightening torque | < 3 N.m |
Main
| Range of product | Telemecanique Radio frequency identification XG |
|---|---|
| RFID compact station name | XGCS |
| Electrical connection | 5 pin(s)male remote connector M12, shielded cable cable 0.2 m |
| Product compatibility | RFID microchip Fujitsu (MB89R118 - MB89R119) RFID microchip INSIDE (micropass) RFID microchip Microelectronic (EM4135) RFID microchip STM (CRIX4K) RFID microchip NXP (SL2, SL1, Ultralight, Std 1K/4K, Desfire) RFID microchip Texas (Tag-it HFI) |
| Transmission rate | 9600 bauds...115200 bauds (automatic detection) |
| Product or component type | Compact smart antenna |
|---|---|
| Design | Flat form 80 x 80 x 26 |
| Outer dimension | 80 x 80 x 26 mm |
| Rated supply voltage (Us) | 24 V DC conforming to Protective Extra Low Voltage |
Environment
| Product certifications | UL, FCC |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Electromagnetic compatibility | Electrostatic discharge immunity test: (contact discharge), 3, 6 kV, conforming to IEC 61000-4-2, electrostatic discharge immunity test: (air discharge), 3, 8 kV, conforming to IEC 61000-4-2, electrical fast transient/burst immunity test: (signal ports), 3, 1 kV, conforming to IEC 61000-4-4, electrical fast transient/burst immunity test: (power ports), 3, 2 kV, conforming to IEC 61000-4-4, susceptibility to electromagnetic fields: , 3, 10 V/m, conforming to IEC 61000-4-3, 1.2/50 µs shock waves immunity test: , 3, 10 kV, conforming to IEC 61000-4-5, conducted RF disturbances: , 3, 10 V, conforming to IEC 61000-4-6, magnetic field at power frequency: , 4, 30 A/m, conforming to IEC 61000-4-8 |
| Standards | ETSI EN 300 330-1 ETSI EN 300 330-2 ETSI EN 301 489-1 ETSI EN 301 489-3 |
|---|---|
| Vibration resistance | 2 mm (f= 5-29.5 Hz) conforming to IEC 60068-2-6, 7 gn (f= 29.5-150 Hz) conforming to IEC 60068-2-6 |
| IK degree of protection | IK02 conforming to IEC 62262 |
