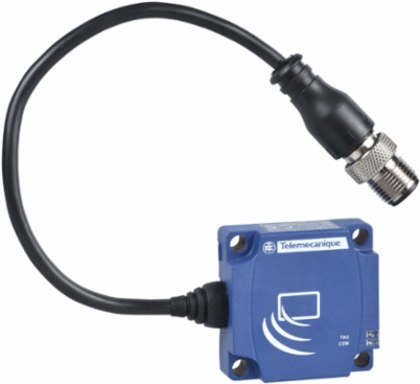

Telemecanique Sensors XGCS4901201 Compact smart antenna, Radio frequency identification XG, RFID 13.56 MHz, flat form 40x40x15, M12, cable 0.2 m
- MPN: XGCS4901201
- PPN: TES-XGCS4901201
- UNSPSC: 39122230
CAD
$1327.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This smart antenna is part of the XG range, an offer of RFID readers and tags. RFID, Radio Frequency Identification, refers to radio frequency identification systems, 13.56 MHz. This flat format smart antenna is dedicated to Modbus RTU and Uni-Telway protocols. Depending on the associated tags, its sensing distance is 10mm to 70mm. Its degree of protection is IP65. It is a compact format antenna, 40mm x 40mm x 40mm, with a 3-wire unshielded cable with M12 connector, A-coded, for connection to the communication network and power supply. This smart antenna is suitable for many applications. Logistics, tracking and sorting of baggage, traceability in the food processing industry, flexible assembly lines in the automotive sector, automatic toll booths and access control. It complies with EN 301489-1, EN 301489-3, ETS 300330-1, and ETS 300330-2 standards and CE, cULus, IC, FCC part 15 certifications. Field expanders, to be ordered separately, are available to enlarge the dialogue field of the smart antennas Mounting with four CHC type screws.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Radio frequency identification XG
- Rfid Frequency
- 13.56 MHz
- Design
- flat form 40 x 40 x 15
- Electrical Connection
- 5 male remote connector M12, shielded cable 0.2 m
- Product Compatibility
- RFID microchip Microelectronic (EM4135) || RFID microchip Texas (Tag-it HFI) || RFID microchip NXP (SL2, SL1, Ultralight, Std 1K/4K, Desfire) || RFID microchip STM (CRIX4K) || RFID microchip INSIDE (micropass) || RFID microchip Fujitsu (MB89R118 - MB89R119)
- [Us] Rated Supply Voltage
- 24 V DC Protective Extra Low Voltage
Outer Dimension40 x 40 x 15 mm
Product Or Component Typecompact smart antenna
[Sn] Nominal Sensing Distance10-70 mm
Transmission Rate9600 bauds...115200 bauds (automatic detection)
Rfid Compact Station NameXGCS
Complementary
- Tightening Torque
- < 1 N.m
- Marking
- CE
- Net Weight
- 0.057 kg
- Communication Port Support
- RS485
- Supply Voltage Limits
- 19.2-29 V DC
Status Ledcommunication network 1 LED dual colour) || RFID communication 1 LED dual colour)
Associated Tag Typeautomatic detection of the type of tag || ISO 14443 standard tags || ISO 15693 standard tags
Current Consumption< 60 mA
Communication Port ProtocolModbus RTU || Uni-Telway
Environment
- Product Certifications
- UL, FCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test 6 kV contact discharge) 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV air discharge) 3 IEC 61000-4-2 || electrical fast transient/burst immunity test 1 kV signal ports) 3 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV power ports) 3 IEC 61000-4-4 || susceptibility to electromagnetic fields 10 V/m3 IEC 61000-4-3 || 1.2/50 µs shock waves immunity test 10 kV3 IEC 61000-4-5 || conducted RF disturbances 10 V3 IEC 61000-4-6 || magnetic field at power frequency 30 A/m4 IEC 61000-4-8
- Vibration Resistance
- 2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6
- Ip Degree Of Protection
- IP65 IEC 60529
Ik Degree Of ProtectionIK02 EN 50102
StandardsETSI EN 301 489-3 || ETSI EN 300 330-1 || ETSI EN 301 489-1 || ETSI EN 300 330-2
Shock Resistance30 gn 11 ms EN 60068-2-27
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060407EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI111218EN
