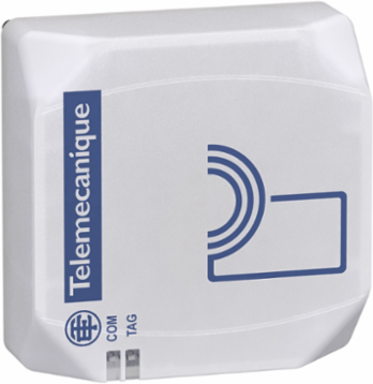

Telemecanique Sensors XGCS49LB201 Panel mounting smart antenna with lights, Radio frequency identification XG, pilot
Telemecanique Sensors XGCS49LB201 Panel mounting smart antenna with lights, Radio frequency identification XG, pilot
- MPN: XGCS49LB201
- PPN: TES-XGCS49LB201
- UNSPSC: 43211710
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1327.50/ EA
Description
This standalone smart antenna with pilot lights is part of the XG range, an offer of RFID readers and tags. RFID, Radio Frequency Identification, refers to radio frequency identification systems, 13.56 MHz. It is mounted on a panel through a standard diameter 22mm hole and manually tightened to secure in place using a single locking nut. The locking nut is supplied with the smart antenna. It has integrated multi-color LED. For Modbus RTU protocol, with a RS 485 physical interface and a data rate of 9,600baud to 115, 000baud. Depending on the associated tags, its sensing distance is 20mm to 70mm. Its degree of protection is IP65 for the rear face and IP69K for the front face. This antenna operates at ambient air temperature from -25°C to +70°C. It features a compact format of 40mm x 40mm x 40mm, a M12 connector for the power supply and integrated multi-color LEDs that can be controlled remotely by the automation system via the Modbus RTU communication network. This smart antenna, with its sleek, clean design with no screws on the front face, is intended for use in industrial environments, particularly in cleaning applications in the medical and food and beverage sectors It complies with EN 301489-1, EN 301489-3, EN 300330-1 and EN 300330-2 standards, and CE, cULus, IC, FCC part 15 certifications. Dedicated electronic tags and accessories, such as network T-connectors and M12 cables, to be ordered separately, are available to facilitate daisy-chain connections. For rapid and efficient access control. Easy to install and configure. Rugged and compact products, with a worldwide compatibility.
Specifications
Environment
- Product Certifications
- UL, FCC
- Ambient Air Temperature For Operation
- -25-70 °C
- Standards
- ETSI EN 301 489-3 || ETSI EN 300 330-2 || ETSI EN 300 330-1 || ETSI EN 301 489-1
- Electromagnetic Compatibility
- electrostatic discharge immunity test 6 kV contact discharge) 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV air discharge) 3 IEC 61000-4-2 || electrical fast transient/burst immunity test 1 kV signal ports) 3 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV power ports) 3 IEC 61000-4-4 || susceptibility to electromagnetic fields 10 V/m3 IEC 61000-4-3 || 1.2/50 µs shock waves immunity test 10 kV3 IEC 61000-4-5 || conducted RF disturbances 10 V3 IEC 61000-4-6 || magnetic field at power frequency 30 A/m4 IEC 61000-4-8
- Vibration Resistance
- 2 mm 5-29.5 Hz)EN 60068-2-6 || 7 gn 29.5-150 Hz)EN 60068-2-6
Ik Degree Of ProtectionIK02 EN 50102
Ambient Air Temperature For Storage-40-85 °C
Ip Degree Of Protectionfront face IP69K IEC 60529 || back IP65 IEC 60529
Shock Resistance30 gn 11 ms EN 60068-2-27
Complementary
- Communication Port Support
- RS485 non isolated
- Communication Port Protocol
- Modbus RTU
- Supply Voltage Limits
- 19.2-29 V DC
- Associated Tag Type
- automatic detection of the type of tag || ISO 15693 standard tags || ISO 14443 standard tags
- Current Consumption
- < 60 mA
Tightening Torque< 2.2 N.m
Status Ledcommunication network 1 LED dual colour) || RFID communication 1 LED dual colour) || multi-colour LED 2 LEDs multi-colour)
MarkingCE
Net Weight0.057 kg
Specifications
- [Sn] Nominal Sensing Distance
- 10-70 mm
- Outer Dimension
- 40 x 40 x 40 mm
- Rfid Frequency
- 13.56 MHz
- Transmission Rate
- 9600 bauds...115200 bauds (automatic detection)
- Design
- diameter 22 mounting
- [Us] Rated Supply Voltage
- 24 V DC Protective Extra Low Voltage
Range Of ProductTelemecanique Radio frequency identification XG
Electrical Connection5 1 male connector M12
Product Or Component Typepanel mounting smart antenna with lights
Product CompatibilityRFID microchip Texas (Tag-it HFI) || RFID microchip INSIDE (micropass) || RFID microchip Fujitsu (MB89R118 - MB89R119) || RFID microchip NXP (SL2, SL1, Ultralight, Std 1K/4K, Desfire) || RFID microchip STM (CRIX4K) || RFID microchip Microelectronic (EM4135)
Rfid Compact Station NameXGCS
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
