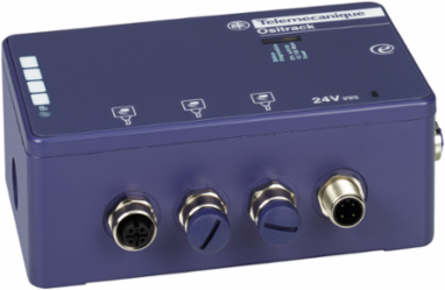

Telemecanique Sensors XGSZ33ETH Connection Ethernet box, Radio frequency identification XG, Modbus TCP/IP, 3 channels for XGCS smart antennas
- MPN: XGSZ33ETH
- PPN: TES-XGSZ33ETH
- UNSPSC: 39122230
CAD
$2703.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This connection box is part of the XG range, an offer of RFID readers and tags. RFID, Radio Frequency Identification, refers to radio frequency identification systems, 13.56 MHz. This product is a quick connection box for Ethernet Modbus TCP/IP network. It enables the connection of XGCS smart antennas to the Ethernet network It enables an automation platform or PC to access the XGCS smart antenna functions, such as reading and writing tags, control and command, monitoring and diagnostics Voltage 24V DC Its degree of protection is IP65. This antenna operates at ambient air temperature from 0°C to +70°C. It features a 130mm x 80mm x 51mm plastic case and a male 4-pin M12 connector. It complies with CE standard and UL certification. A mounting plate XGSZ3P, to be ordered separately, is available to facilitate the mounting of this connection box.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Radio frequency identification XG
- Product Or Component Type
- connection Ethernet box
- Communication Port Protocol
- Modbus TCP/IP
- Device Short Name
- XGSZ33
Station NameXGCS49 || XGCS89
Electrical Connection1 male connector M12 4 pins power supply A coding) || 3 female connectors M12 5 pins stations XGCS A coding) || 1 connector M12 4 pins Ethernet network D coding)
Number Of Channels3
[Us] Rated Supply Voltage24 V DC Protective Extra Low Voltage
Complementary
- Bus Conformity Class
- A10
- Communication Service
- Modbus messaging
- Marking
- CE
- Net Weight
- 1.06 kg
- Register Words
- 1...123 words
- Transmission Rate
- 10/100 Mbit/s
Status LedEthernet network activity 1 LED green) || supply on 1 LED green) || collision detection 1 LED red) || fault 1 LED red) || diagnostics 1 LED yellow)
Power Consumption In W1 W
Transmission Support Mediumethernet cable
Supply Voltage Limits19.2-29 V DC
Port Ethernet10BASE-T || 100BASE-TX
Environment
- Product Certifications
- UL
- Emc Filter
- Class B EMC filter EN 55022 || Level 3 EMC filter IEC 61000
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation0-70 °C
Relative Humidity30-95 %
Ip Degree Of ProtectionIP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060407EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111218EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
