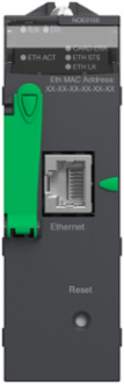

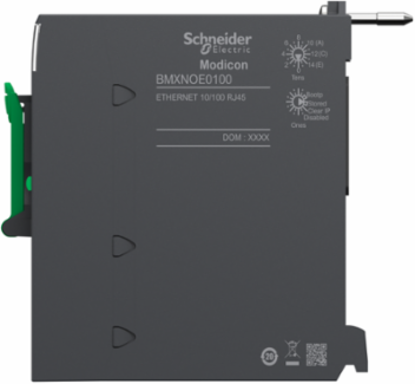

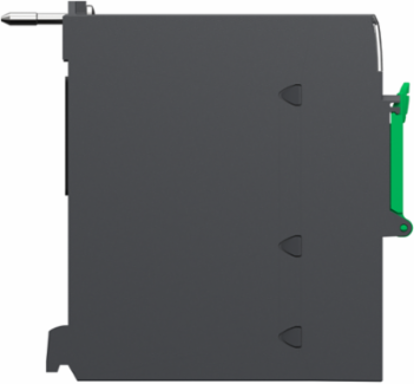

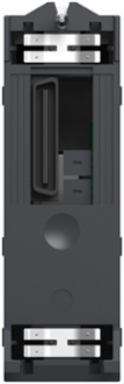

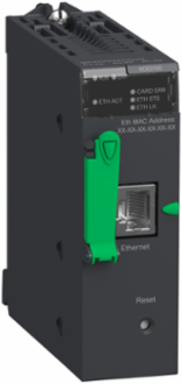

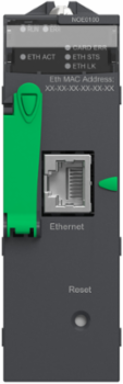

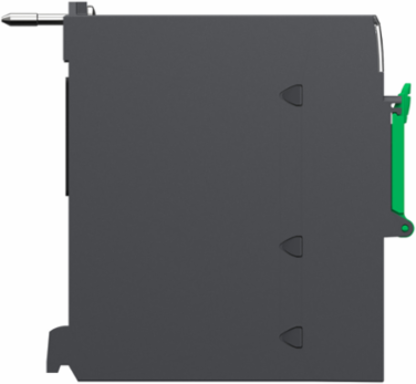

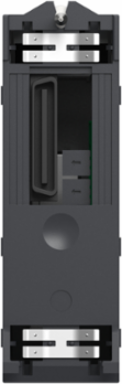

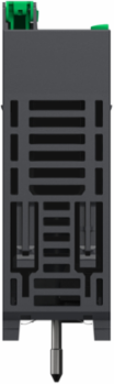

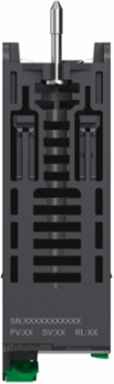

Schneider Electric BMXNOE0100 Modicon M340 Ethernet TCP/IP Network Module, RJ45, 90mA, IP20
- MPN: BMXNOE0100
- PPN: SCH-BMXNOE0100
CAD
$2337.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has RJ45 10/100Mbps connection. It is a module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash memory card (BMXRWSC016M). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Communications & Management Attributes
- Communication Service
- bandwidth management, Data Editor (via PC terminal), FDR server, Rack Viewer, SNMP network administrator, Global Data, I/O scanning, Modbus TCP messaging, web server configurable
Complementary Attributes
- Integrated Connection Type
- Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Local Signalling
- 1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (green) for processor running (RUN), 1 LED (green) for status of Ethernet network (ETH STS), 1 LED (red) for data rate (ETH 100), 1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for processor or system fault (ERR)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0307299219, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0935501953, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 96 kg CO2 eq., 96.3229090909
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Type
- RESET push-button cold restart
- Marking
- CE
- Module Format
- standard
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Supply
- internal power supply via rack
- Total Lifecycle Carbon Footprint
- 113 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 170.2944
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]
- 9737.8125
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 9737.8125
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Memory Usageapplication saving, activating the standard web server
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.378203125
Carbon Footprint Of The Manufacturing Phase [A1 To A3]16 kg CO2 eq., 16.005703125
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
ConceptTransparent Ready
Current Consumption90 mA 24 V DC
Memory Descriptionsupplied Flash memory card (BMXRWSC016M)
Port Ethernet10BASE-T/100BASE-TX
Product Or Component TypeEthernet TCP/IP network module
Range Of ProductModicon M340 automation platform
Software Versionv5.9.4
Sustainable PackagingYes
Pep CodeENVPEP2402021EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential, In %32
Package Weight(Lbs)235.000 g
Warranty (In Months)18
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]2251.584
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2402021EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
China Rohs RegulationX
Carbon Footprint112.8310954581
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- Ethernet TCP/IP network module
Range Of ProductModicon M340 automation platform
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
