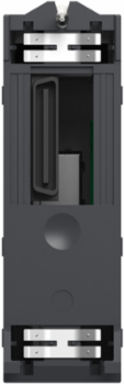

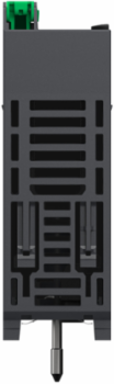

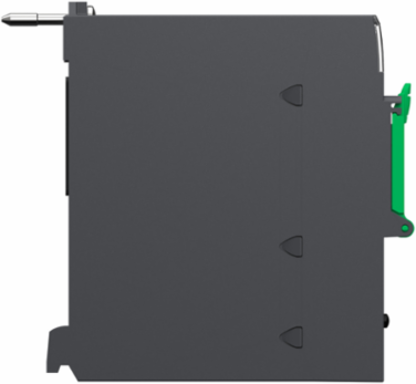

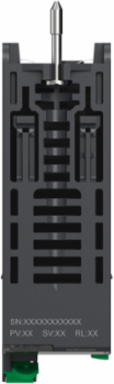

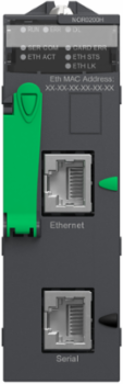

Schneider Electric BMXNOR0200H Modicon M340 Communication Module, IP20, -25 C to +70 C, 0.2 kg
- MPN: BMXNOR0200H
- PPN: SCH-BMXNOR0200H
CAD
$3324.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

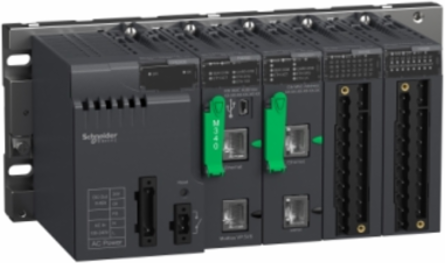

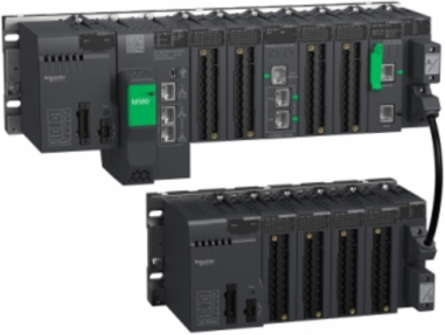

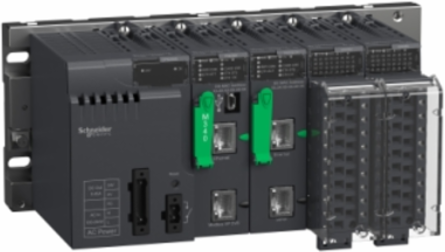

This product is part of Modicon M340 range, a mid-range PAC for industrial process and infrastructure control. This communication module enables M580 and M340 platforms to use RTU protocol exchange with RTU stations. It is an RTU module with a current consumption of 95mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with Ethernet RJ45 10/100Mbps and serial RS232/485 RJ45 300/38400bps 1 twisted pair transparent ready class C30 for integrated connections. It is an IP20 rated product. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash SD memory card (BMXRWS128MWF) 128000kB. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Compact-shaped, Modicon M340 offers flexibility and integrated functions in a small box.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Communications & Management Attributes
- Communication Service
- bandwidth management, Modbus TCP messaging, DNP3/DNP3 IP protocol, IEC 60870-5 -101/-104 protocol, time stamped events management, external modem management (serial, PSTN, GSM, GPRS/3G), data logging in CSV files, Email/SMS notifications, web server, rack viewer, data editor, BootP, DHCP, FDR client, SMTP server, FTP client/server, NTP client, SNMP agent,, automatic events backup on power loss, multi-protocols support in a single module (master and slave), transparent events routing from remote slaves to SCADA
Complementary Attributes
- Integrated Connection Type
- Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Environmental Characteristic
- gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
- Memory Usage
- activating the standard web server, user web pages storage, data logging CSV files storage
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0336067656, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1023080859, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 102 kg CO2 eq., 101.6741818182
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Memory Description
- supplied Flash SD memory card (BMXRWS128MWF) 128000 kB
- Port Ethernet
- 10BASE-T/100BASE-TX
- Product Or Component Type
- communication module
- Range Of Product
- Modicon M340
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2402021EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 32
- Package Weight(Lbs)
- 253.000 g
- Warranty (In Months)
- 18
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2376.672
- Customs Code
- 8517620090
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator

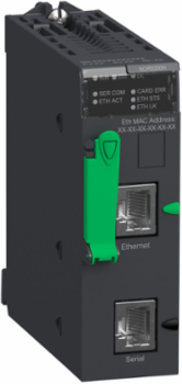

Local Signalling1 LED (green) for activity on Ethernet network (ETH ACT), 1 LED (green) for processor running (RUN), 1 LED (green) for status of Ethernet network (ETH STS)1 LED (red) for memory card fault (CARD ERR), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for download in progress (DL)1 LED (yellow) for serial communication (SER COM), 1 LED (green) for data rate (ETH LINK)
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22, UKCA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.413609375
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.504109375
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402021EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Current Consumption95 mA 24 V DC
Module Formatstandard
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityYes
Supplyinternal power supply via rack
Total Lifecycle Carbon Footprint120 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh179.7552
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]10649.4375
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]10649.4375
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 119.7278154197
- Environmental Disclosure
- ENVPEP2402021EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2402021EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402021EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- communication module
Range Of ProductModicon M340
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
