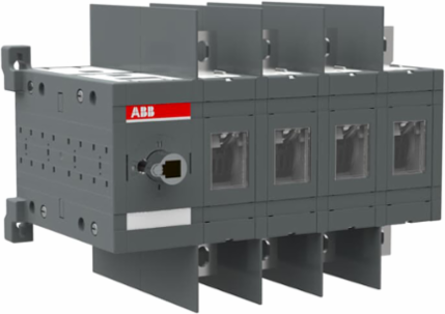

ABB OT400U04C OT400U04C CHANGE-OVER SWITCH

Name: ABB OT400U04C OT400U04C CHANGE-OVER SWITCH
Brand: ABB
SKU: ABB-OT400U04C

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

400A, 4 pole manual change-over switch. Handle and shaft has to be ordered separately. UL version.

Product Net Width	305 mm12.01 in
Product Net Depth / Length	203 mm7.99 in

Product Net Height	185 mm7.28 in
Product Net Weight	7.66 kg16.89 lb

Rated Operational Current AC-21A (Ie)	(380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
Rated Operational Current AC-23A (Ie)	(380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
Rated Operational Current AC-33B (Ie)	(380 ... 415 V) 400 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Operational Voltage	1000 V
Power Loss	10 W
Handle Color	Black
Fourth Pole Position	Right Side
Switches Operating Mechanism	Mechanism at the End of the Switch04 (Left Side)
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Standards	UL 98 / IEC60947-6-1
Number of Poles	4
Mechanical Durability	8000 cycle

Rated Operational Current AC-22A (Ie)	(380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
Rated Operational Current AC-31B (Ie)	(380 ... 415 V) 400 A
Conventional Free-air Thermal Current (Ith)	Θ = 40 °C 400 A
Rated Insulation Voltage (Ui)	1000 V
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 15 kiloampere rms
Pollution Degree	3
Handle Type	Handle and shaft not included
Fourth Pole Type	Switched - Simultaneous Function
Distance Between Phases	Standard
Operating Mode	Front operated
Mounting Type	Base mounting
Degree of Protection	Front IP20
Transition Type	Open

Object Classification Code	Q
IDEA Granular Category Code (IGCC)	5290 >> Disconnect switch
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ETIM 9	EC000216 - Switch disconnector (low voltage)
eClass	V11.1 : 27371403

RoHS Status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Environmental Information	1SCC303050D0201

Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201

Environmental Information	1SCC303050D0201
RoHS Information	1SCC011020D0201

Ampere Rating	400 A

Horsepower Rating UL/CSA	(acc. to UL 240 V) 125 Hp(acc. to UL 480 V) 250 Hp(acc. to UL 600 V) 350 Hp

Minimum Order Quantity	1 piece
Country of Origin	Finland (FI)

Customs Tariff Number	85365080
