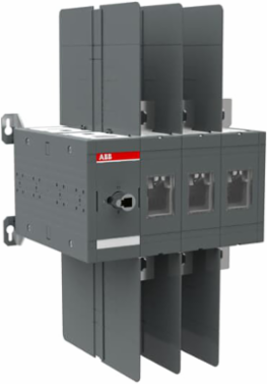

ABB OT600U03C OT600U03C CHANGE-OVER SWITCH
- MPN: OT600U03C
- UPC: 804325169356
- PPN: ABB-OT600U03C
- UNSPSC: 39122233
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
600A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately. UL version.
Specifications
Dimensions
- Product Net Width
- 311 mm12.24 in
- Product Net Depth / Length
- 280 mm11.02 in
Product Net Height250 mm9.84 in
Product Net Weight15 kg33.07 lb
Technical
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A
- Rated Operational Current AC-33B (Ie)
- (380 ... 415 V) 800 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Operational Voltage
- 1000 V
- Power Loss
- 25 W
- Handle Color
- Black
- Switches Operating Mechanism
- Mechanism at the End of the Switch03 (Left Side)
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Standards
- UL 98 / IEC60947-6-1
- Number of Poles
- 3
- Mechanical Durability
- 5000 cycle
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 800 A(500 V) 800 A(690 V) 800 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 800 A
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 800 A
Rated Insulation Voltage (Ui)1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kiloampere rms
Pollution Degree3
Handle TypeHandle and shaft not included
Distance Between PhasesStandard
Operating ModeFront operated
Mounting TypeBase mounting
Degree of ProtectionFront IP20
Transition TypeOpen
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information1SCC303050D0201
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC011021D0201
Environmental Information1SCC303050D0201
RoHS Information1SCC011020D0201
Technical UL/CSA
- Ampere Rating
- 600 A
Horsepower Rating UL/CSA(acc. to UL 240 V) 200 Hp(acc. to UL 480 V) 450 Hp(acc. to UL 600 V) 500 Hp
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
