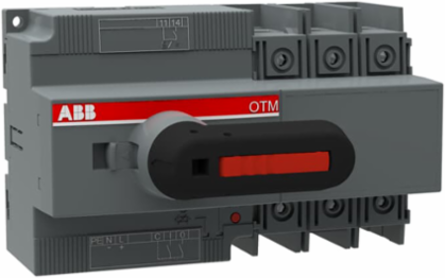

ABB OTM40F3M230V OTM40F3M230V MOTORIZED SWITCH
- MPN: OTM40F3M230V
- UPC: 888614262409
- PPN: ABB-OTM40F3M230V
- UNSPSC: 39122233
CAD
$1109.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3-pole, motor operated, base mounted switch-diconnector with protected clamp terminals and handle for manual operation
Specifications
Dimensions
- Product Net Width
- 160 mm
- Product Net Depth / Length
- 116 mm
Product Net Height100 mm
Product Net Weight0.9 kg
Technical
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 23 A(500 V) 23 A(690 V) 12 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 40 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- Main Circuit 750 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 0.5 kA
- Motor Operational Voltage
- 110 ... 240 V AC/DC
- Pollution Degree
- 3
- Handle Type
- Direct mounted handle
- Distance Between Phases
- Standard
- Operating Mode
- Front operated
- Special Functions
- No
- Number of Poles
- 3
- Degree of Protection
- Front IP20
- Tightening Torque
- acc. IEC 60947-1 0.8 N·m
- Lock Type
- Yes
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 5.5 kW(400 ... 415 V) 11 kW(500 V) 11 kW(690 V) 11 kW
Conventional Thermal Current (Ithe)Fully Enclosed 40 A
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 0.71 kA
Rated Conditional Short-Circuit Current (Inc)(125 A fuse, 415 V) 50 kA(125 A fuse, 690 V) 18 kA(63 A fuse, 690 V) 50 kA
Power Lossat Rated Operating Conditions per Pole 1.6 W
Handle ColorBlack
Switches Operating MechanismMechanism at the End of the Switch
Position of Line TerminalsTop In - Bottom Out
StandardsIEC 60947-3
Mounting TypeBase mounting
Cable Cross-SectionCu 0.75 ... 10 mm²
Terminal TypeScrew Terminals
Mechanical Durability20000
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC011020D0201
REACH Declaration1SCC011021D0201
Technical UL/CSA
- Tightening Torque
- acc. IEC 60947-1 0.8 N·m
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
