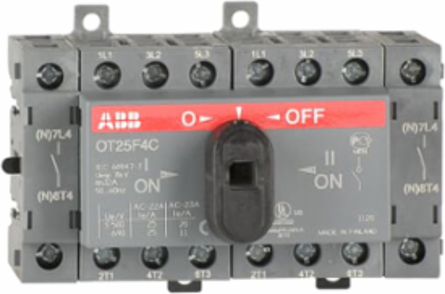

ABB OT25F4C OT25F4C CHANGE-OVER SWITCH
- MPN: OT25F4C
- UPC: 888614013513
- PPN: ABB-OT25F4C
- UNSPSC: 39122233
CAD
$609.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
Specifications
Dimensions
- Product Net Width
- 96 mm3.78 in
- Product Net Depth / Length
- 68 mm2.68 in
Product Net Height68 mm2.68 in
Product Net Weight0.31 kg0.68 lb
Technical
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 25 A(500 V) 25 A(690 V) 25 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 20 A(500 V) 20 A(690 V) 11 A
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 32 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Operational Voltage
- 750 V
- Power Loss
- 0.6 W
- Handle Color
- Black
- Fourth Pole Position
- Right Side
- Switches Operating Mechanism
- Mechanism on Top of the Switch
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Standards
- UL 98 / IEC60947-3
- Number of Poles
- 4
- Degree of Protection
- Front IP20
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 25 A(500 V) 25 A(690 V) 25 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 9 kW(500 V) 9 kW(690 V) 9 kW
Conventional Thermal Current (Ithe)Fully Enclosed 32 A
Rated Insulation Voltage (Ui)750 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 0.5 kiloampere rms
Pollution Degree3
Handle TypeHandle and shaft not included
Fourth Pole TypeSwitched - Simultaneous Function
Distance Between PhasesStandard
Operating ModeFront operated
Mounting TypeBase mounting
Cable Cross-Section0.75 ... 10 mm²
Transition TypeOpen
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
E-Number (Finland)3601432
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- RoHS Information
- 1SCC011020D0201
REACH Declaration1SCC011021D0201
Technical UL/CSA
- Ampere Rating
- 25 A
Horsepower Rating UL/CSA(acc. to UL 200 V) 7.5 Hp(acc. to UL 208 V) 7.5 Hp(acc. to UL 240 V) 7.5 Hp(acc. to UL 480 V) 15 Hp(acc. to UL 600 V) 20 Hp
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
