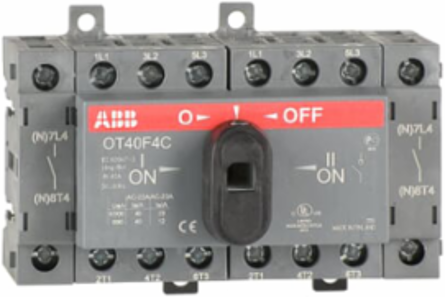

ABB OT40F4C OT40F4C CHANGE-OVER SWITCH

MPN: OT40F4C
UPC: 888614013698
PPN: ABB-OT40F4C
UNSPSC: 39122233

$617.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

40A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition

Specifications

Dimensions

Product Net Width	96 mm3.78 in
Product Net Depth / Length	68 mm2.68 in

Product Net Height	68 mm2.68 in
Product Net Weight	0.68 kg1.5 lb

Technical

Rated Operational Current AC-21A (Ie)	(380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A
Rated Operational Current AC-23A (Ie)	(380 ... 415 V) 23 A(500 V) 23 A(690 V) 12 A
Conventional Free-air Thermal Current (Ith)	Θ = 40 °C 40 A
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Operational Voltage	750 V
Power Loss	1.6 W
Handle Color	Black
Fourth Pole Position	Right Side
Switches Operating Mechanism	Mechanism on Top of the Switch
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Standards	UL 98 / IEC60947-3
Number of Poles	4
Degree of Protection	Front IP20

Rated Operational Current AC-22A (Ie)	(380 ... 415 V) 40 A(500 V) 40 A(690 V) 40 A
Rated Operational Power AC-23A (Pe)	(380 ... 415 V) 11 kW(500 V) 11 kW(690 V) 11 kW
Conventional Thermal Current (Ithe)	Fully Enclosed 40 A
Rated Insulation Voltage (Ui)	750 V
Rated Short-time Withstand Current Low Voltage (Icw)	for 1 s 0.5 kiloampere rms
Pollution Degree	3
Handle Type	Handle and shaft not included
Fourth Pole Type	Switched - Simultaneous Function
Distance Between Phases	Standard
Operating Mode	Front operated
Mounting Type	Base mounting
Cable Cross-Section	0.75 ... 10 mm²
Transition Type	Open

Classifications

Object Classification Code	Q
IDEA Granular Category Code (IGCC)	5290 >> Disconnect switch
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ETIM 9	EC000216 - Switch disconnector (low voltage)
eClass	V11.1 : 27371403
E-Number (Finland)	3601443

Environmental

RoHS Status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Circular Value

Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
RoHS Information	1SCC011020D0201

REACH Declaration	1SCC011021D0201

Technical UL/CSA

Ampere Rating	40 A

Horsepower Rating UL/CSA	(acc. to UL 200 V) 10 Hp(acc. to UL 208 V) 10 Hp(acc. to UL 240 V) 10 Hp(acc. to UL 480 V) 20 Hp(acc. to UL 600 V) 25 Hp

Ordering

Minimum Order Quantity	1 piece
Country of Origin	Finland (FI)

Customs Tariff Number	85365080
