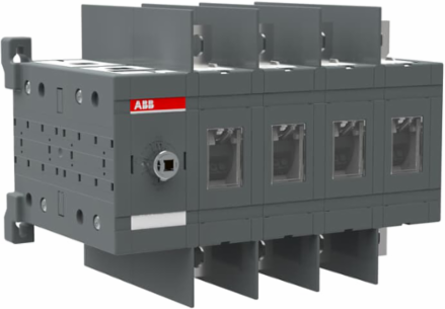

ABB OT200U04C OT200U04C Change-over switch
- MPN: OT200U04C
- UPC: 662019416922
- PPN: ABB-OT200U04C
- UNSPSC: 39122233
CAD
$2480.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
200A, 4 pole manual change-over switch. Handle and shaft has to be ordered separately. UL version.
Specifications
Dimensions
- Product Net Width
- 237 mm9.33 in
- Product Net Depth / Length
- 160 mm6.3 in
Product Net Height150 mm5.91 in
Product Net Weight3.99 kg8.8 lb
Technical
- Rated Operational Current AC-21A (Ie)
- (380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A
- Rated Operational Current AC-33B (Ie)
- (380 ... 415 V) 250 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Operational Voltage
- 1000 V
- Pollution Degree
- 3
- Handle Type
- Handle and shaft not included
- Fourth Pole Type
- Switched - Simultaneous Function
- Distance Between Phases
- Standard
- Operating Mode
- Front operated
- Mounting Type
- Base mounting
- Degree of Protection
- Front IP20
- Tightening Torque
- acc. IEC 60947-1 15 ... 22 N·m
- Transition Type
- Open
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A(500 V) 200 A(690 V) 200 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 250 A
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Rated Insulation Voltage (Ui)1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Handle ColorBlack
Fourth Pole PositionRight Side
Switches Operating MechanismMechanism at the End of the Switch04 (Left Side)
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
StandardsUL 98 / IEC60947-6-1
Number of Poles4
Terminal Width20 mm
Mechanical Durability8000 cycle
Classifications
- Object Classification Code
- Q
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
ETIM 9EC000216 - Switch disconnector (low voltage)
eClassV11.1 : 27371403
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information1SCC303050D0201
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC011021D0201
Environmental Information1SCC303050D0201
RoHS Information1SCC011020D0201
Technical UL/CSA
- Ampere Rating
- 200 A
- Tightening Torque
- acc. IEC 60947-1 15 ... 22 N·m
Horsepower Rating UL/CSA(acc. to UL 240 V) 75 Hp(acc. to UL 480 V) 150 Hp(acc. to UL 600 V) 200 Hp
Ordering
- Minimum Order Quantity
- 1 piece
- Country of Origin
- Finland (FI)
Customs Tariff Number85365080
