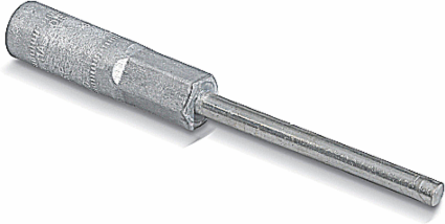

Blackburn PTSK 4/0 Shrouded Compression Pin Terminals for 4/0 Aluminum Stranded, 4 Inch Length
- MPN: PTSK 4/0
- UPC: 783786742745
- PPN: T-B-PTSK 4/0
CAD
$68.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Shrouded Compression Pin Terminals - Common Die Series, conductor size Aluminum 4/0 Stranded, 4/0 ACSR, solid Copper pin .364, shroud id .750, installing dies 840,11A,76,TX,249, length (P) 4 inch, length (B) 1-3/4 inch.
Specifications
Packaging
| Inner Quantity | 25 |
|---|---|
| Outer Quantity | 100 |
| Weight Uom | 30.19 lbs. per 100 |
| Inner Dimensions (inches) | 7.25x6.5x4 |
|---|---|
| Outer Dimensions (inches) | 14x10x8 |
North American Specifications (UNSPSC)
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| Brand Name | Blackburn |
| Special Features | Made from pure Electrolytic Aluminum which provides high strength and high conductivity. Prefilled with Oxide Inhibitor to prevent Oxidation. Metal Sealant protects Pin/Body from Moisture Intrusion |
| Connection | Crimp / Compression |
| Material | Aluminum and Copper |
| IGCC | 4603 Electrical terminals |
|---|---|
| Type | Shrouded Compression Pin Terminals |
| Application | Rainshield Protection for Insulated Cable installed in Exposed Areas |
| Wire Size | Aluminum Stranded 1/0, ACSR 1/0 |
