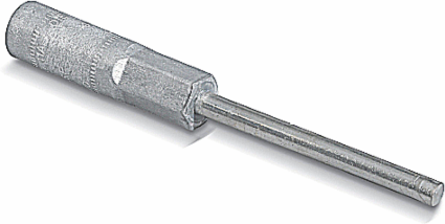

Blackburn PTSG 21 Shrouded Compression Pin Terminals, Aluminum Stranded #2-#1, 2 Inch Length

MPN: PTSG 21
UPC: 783786742646
PPN: T-B-PTSG 21

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$45.12/ EA

Qty:

Loading add to cart quantity...

Description

Shrouded Compression Pin Terminals - Common Die Series, conductor size Aluminum 2-1 Stranded, 2-1 ACSR, solid Copper pin .258, shroud id .604, installing dies 52,TU,8A,5/8,243, length (P) 2 inch, length (B) 1-7/8 inch.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Blackburn

Special Features: Made from pure Electrolytic Aluminum which provides high strength and high conductivity. Prefilled with Oxide Inhibitor to prevent Oxidation. Metal Sealant protects Pin/Body from Moisture Intrusion

Connection: Crimp / Compression

Material: Aluminum and Copper

IGCC4603 Electrical terminals

TypeShrouded Compression Pin Terminals

ApplicationRainshield Protection for Insulated Cable installed in Exposed Areas

Wire SizeAluminum Stranded #2-#1, ACSR #2-#1

Packaging

Inner Quantity: 50

Outer Quantity: 200

Weight Uom: 0.12 lbs. Each

Inner Dimensions (inches)7.25x6.5x4

Outer Dimensions (inches)14x9.62x7.75

Downloads
