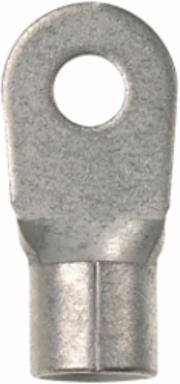

Panduit P4-38R-E Pan-Term® P4-38R-E Ring Terminal
- MPN: P4-38R-E
- UPC: 074983870585
- PPN: PAN-P4-38R-E
- UNSPSC: 39121409
CAD
$2.56
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ring terminal, large wire, 4 AWG, 3/8" stud size, non-insulated, standard package.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Segment | IEI |
| Overall Length (In.) | 1.46 |
| Packaging Type | Bottle |
| Tongue Width (In.) | 0.68 |
| Outer Diameter (In.) | 0.39 |
| Barrel Type | Standard |
| For Use With | CT-1701, CT-2600 (CD-2600-P4) |
| Stud Size | 3/8" |
| Base Material | Copper |
| Stud Hole Size (mm) | 10 |
| Tongue Length (mm) | 28.4 |
| Product Type | Ring Terminal |
| Seam Type | Brazed |
| Overall Width (mm) | 17.3 |
| Overall Width (In.) | 0.68 |
| Inside Diameter (mm) | 7.4 |
| Wire Size | 4 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Stud Hole Size (In.) | 3/8 |
| Sub Brand | Pan-Term® |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Maximum Voltage (V) | 2000 |
| Tongue Thickness (In.) | 0.05 |
| Inside Diameter (In.) | 0.29 |
| Overall Length (mm) | 37.1 |
| Tongue Thickness (mm) | 1.3 |
| Maximum Operating Temperature (°C) | 150 |
| Outer Diameter (mm) | 9.9 |
| Maximum Operating Temperature (°F) | 302 |
| Finish/Coating | Tin-Plated |
| Tongue Length (In.) | 1.12 |
| Tongue Width (mm) | 17.3 |
| Copper Conductor Size | 4 AWG |
Packaging Details
| UPC | 07498387058 |
|---|---|
| Standard Package Volume Ft3 | 0.0063 |
| Std Package Height In | 1.9 |
| Std Package Length In | 4.3 |
| Std Package Width In | 1.95 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 20 |
| Standard Carton Volume Ft3 | 0.0626 |
| Std Carton Height In | 4.5 |
| Std Carton Length In | 10.05 |
| Std Carton Width In | 4.5 |
| Std Ctn Qty | 200 |
| EAN | 00074983870585 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Restricted Use of Hazardous Substances | N |
| Min Order Qty | 100.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983870585 |
|---|---|
| Standard Package Weight Pounds | 0.3300 |
| Std Package Height MM | 48.26 |
| Std Package Length MM | 109.22 |
| Std Package Width MM | 49.53 |
| UOM EA PK | PK |
| GTIN Carton | 50074983870580 |
| Standard Carton Weight Pounds | 3.3000 |
| Std Carton Height MM | 114.3 |
| Std Carton Length MM | 255.27 |
| Std Carton Width MM | 114.3 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Lead Content Indicator | N |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
