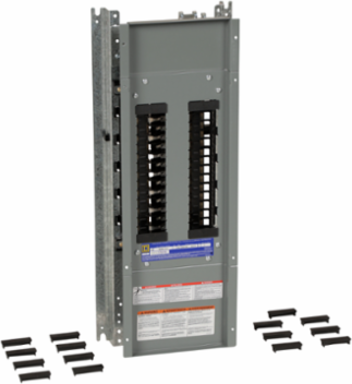

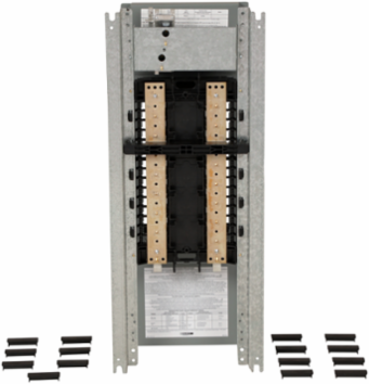

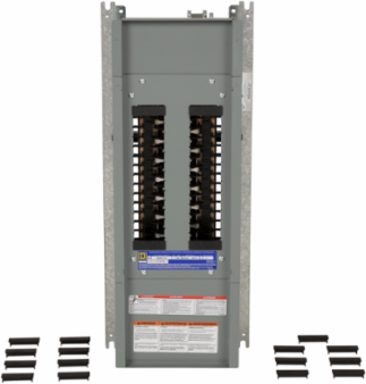

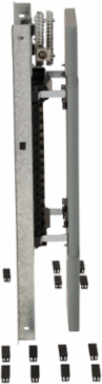

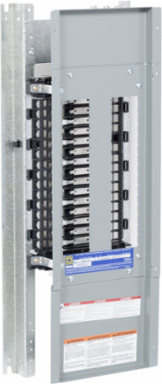

Square D NQ30L1C14 NQ Panelboard Interior 100A, 30 Spaces, 3 Wire, 240V AC, 14 Inch Wide
Square D NQ30L1C14 NQ Panelboard Interior 100A, 30 Spaces, 3 Wire, 240V AC, 14 Inch Wide
- MPN: NQ30L1C14
- UPC: 785901327158
- PPN: SCH-NQ30L1C14
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$940.89/ EA
Description
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for nonlinear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC and 48 VDC. This NQ Panelboard interior has a main lug and is rated at 100 A single phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 3 wire system with 30 circuits and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Interior is 27 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Reach Free Of SvhcYes
Specifications
- Circuit Breaker Type
- QOB || QOB-VH || QHB
- Loadcentre Type
- Main lugs
Product Or Component Typeinteriors
Materialcopper
Complementary
- Height
- 27 in
- Tightening Torque
- 4.52-5.65 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² AWG 4...300 kcmil)
- [Iu] Rated Interrupted Current
- 10 kA || 22 kA || 65 kA
- Wiring Configuration
- 3-wire
- Enclosure Nominal Height
- 32 in
- Enclosure Nominal Width
- 14 in
Enclosure Nominal Depth5.75 in NEMA 1
[In] Rated Current100 A
Width8.63 in
Number Of Spaces30
Network Number Of Phases1 phase
[Ue] Rated Operational Voltage240 V AC || 48 V DC
Environment
- Standards
- CSA C22.2 || UL 67
