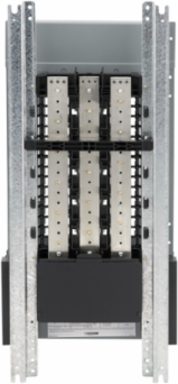

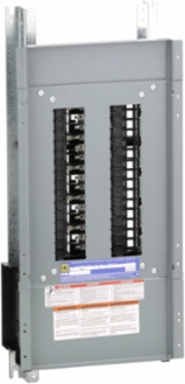

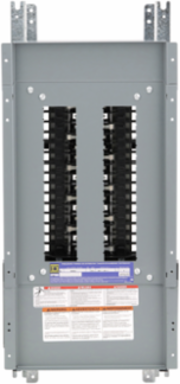

Square D NQ430L2 NQ Panelboard Interior 225A 30 Spaces 240VAC 4 Wire 3 Phase
- MPN: NQ430L2
- UPC: 785901507758
- PPN: SCH-NQ430L2
CAD
$663.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-on branch circuit breakers, integral main circuit breakers, branch mounted SPDs, and a wide variety of ready to install accessory kits. The interiors are field convertible to support top or bottom feed. This main lugs interior is rated 225A for 240VAC and 48VDC, has a plated aluminum bus, and 30 pole spaces. NQ Panelboards are convertible from main lugs to main circuit breaker. NQ Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NQ Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NQ panelboard interior is UL listed for applications in the USA and Canada. Interior accepts QOB, QOBVH and QHB bolt-on and QO, QOVH and QH plug-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. NQ Panelboard interiors are available with plated aluminum or copper bus. 100A branch circuit breakers may be installed on both sides of NQ Panelboard interiors.
Features
- This NQ-series interior features a robust 225-Amp silver-plated copper bus bar with 30 available pole spaces, providing ample capacity for high-density commercial and industrial lighting loads. The high-amperage rating ensures your facility has the overhead necessary to add new equipment or branch circuits without requiring a complete panelboard overhaul, saving thousands in future infrastructure costs.
- Specifically engineered to mount within NEMA 1 or NEMA 3R Schneider Electric / Square D NQ enclosures, this interior provides a factory-perfect fit for 20-inch wide cabinets. Utilizing a genuine OEM interior guarantees that all structural mounting points and dead-front trims align precisely, maintaining the UL Listing of your entire assembly and preventing hazardous field-modification errors.
- Equipped with innovative "Elevated Neutral" mounting and the Schneider Electric patented "Plumb-and-Level" support system, this interior compensates for wall imperfections and misaligned enclosures during the rough-in phase. This allows commercial electricians to achieve a perfectly straight, secure installation in a fraction of the time, reducing labor hours and ensuring a clean, inspector-ready finish.
- This modular design supports the field-installation of sub-feed lugs or feed-through lugs without requiring extensive re-wiring or cabinet replacement. This flexibility is critical for industrial engineers who need to distribute power from the main NQ panel to secondary remote load centers, providing a scalable solution for evolving warehouse or manufacturing floor layouts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Enclosure Nominal Height
- 32 in
Enclosure Nominal Width20 in
Complementary Attributes
- Line Rated Current
- 225 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Circuit Breaker Type
- QOB, QOB-VH, QHB
- Certificate Agency
- UL, CSA
- [Iu] Rated Interrupted Current
- 10 kA, 22 kA, 65 kA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 19 kg CO2 eq., 18.5637017719
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 51 kg CO2 eq., 51.1982744547
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Load Center Type
- main lugs
- Number Of Spaces
- 30
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2303004EN
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Height Nominal
- 27 in
- [Ue] Rated Operational Voltage
- 240 V AC48 V DC
- Package Weight(Lbs)
- 7.167 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG), 11.3-11.3 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG)31.07-31.07 N.m 13.30-177.3 mm² (6 AWG...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (6 AWG...250 kcmil)31.07-31.07 N.m 107.2-152 mm² (4 AWG...300 kcmil)
Connections - Terminalslug line 6 AWG...350 kcmil aluminium, lug neutral 6 AWG...350 kcmil aluminium
Carbon Footprint Of The Distribution Phase [A4]2.2948616503, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2939070664, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.0254774201
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Energy Efficiency OptimizedFalse
Materialaluminium
Phase3 phase 4 wires
Product Or Component Typeinteriors
Software Versionv5.9.4
Total Lifecycle Carbon Footprint72 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508 mm x 146.05 mm,and NEMA 1& 10- followed standard: UL 67 UL 50E and CSA22.2
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Recyclability Potential In %93
Width Nominal10.44 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538100000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 72.3762223634
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303004EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase 4 wires
Product Or Component Typeinteriors
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
