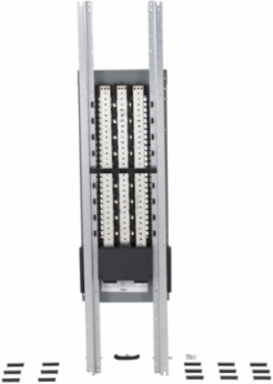

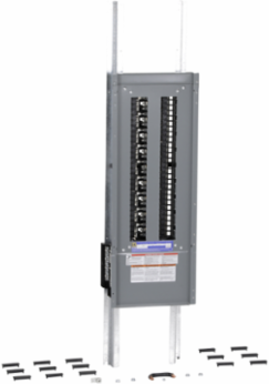

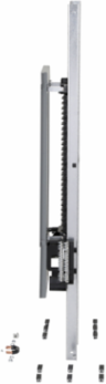

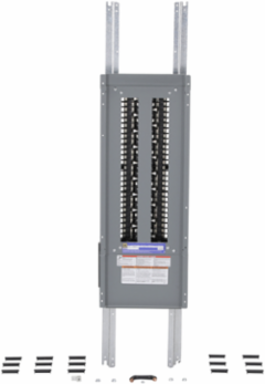

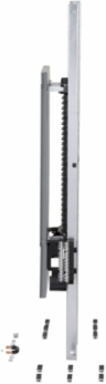

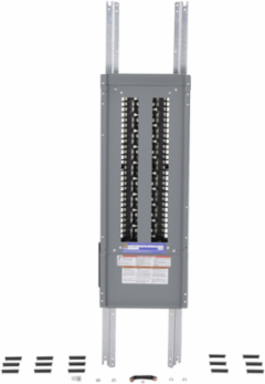

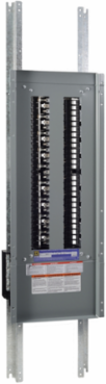

Square D NQ454L6C NQ Panelboard Interior 600A, 54 Pole Spaces, 240VAC, Copper Bus
- MPN: NQ454L6C
- UPC: 785901988526
- PPN: SCH-NQ454L6C
CAD
$2838.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NQ Panelboard Interior 600A, 54 Pole Spaces, 240VAC, Copper Bus
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Enclosure Nominal Height
- 68 in
Enclosure Nominal Width20 in
Complementary Attributes
- Line Rated Current
- 600 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Circuit Breaker Type
- QOB, QOB-VH, QHB
- Certificate Agency
- CSA, UL
- Connections - Terminals
- lug line AWG 1/0...750 kcmil aluminium, lug neutral AWG 1/0...750 kcmil aluminium
- Carbon Footprint Of The Distribution Phase [A4]
- 4.4680763195, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.5722345848, 0.6 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 45 kg CO2 eq., 44.7040371444
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Energy Efficiency Optimized
- False
- Material
- copper
- Phase
- 3 phase 4 wires
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2303004EN
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; MX
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Recyclability Potential, In %
- 93
- Package Weight(Lbs)
- 15.5 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Tightening Torque42.37-42.37 N.m 53.48-152 mm² (AWG 1/0...300 kcmil)31.07-33.90 N.m 53.48-380 mm² (AWG 1/0...750 kcmil), 31.07-33.90 N.m 53.48-177.3 mm² (AWG 1/0...350 kcmil), 62.14-62.14 N.m 53.48-380 mm² (AWG 1/0...750 kcmil), 62.14-62.14 N.m 53.48-152 mm² (AWG 1/0...300 kcmil), 42.37-42.37 N.m 53.48-380 mm² (AWG 1/0...750 kcmil)
[Ue] Rated Operational Voltage240 V AC, 48 V DC
[Iu] Rated Interrupted Current10 kA, 22 kA, 65 kA
Carbon Footprint Of The End-of-life Phase [C1 To C4]36 kg CO2 eq., 36.1433711173
Carbon Footprint Of The Manufacturing Phase [A1 To A3]100 kg CO2 eq., 99.6826094773
Local Data StatusPublishable
Return IndicatorY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Load Center Typemain lugs
Number Of Spaces54
Product AvailabilityStock - Normally stocked in distribution facility
Software Versionv5.9.4
Total Lifecycle Carbon Footprint186 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508 mm x 146.05 mm,and NEMA 1& 10- followed standard: UL 67 UL 50E and CSA22.2
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh100.21
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 185.5703286432
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303004EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase 4 wires
