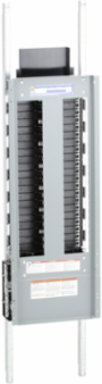

Square D NF442L4C Panelboard Interior, 400A, 42 Pole Spaces, Copper Bus, 4-Wire System
Square D NF442L4C Panelboard Interior, 400A, 42 Pole Spaces, Copper Bus, 4-Wire System
- MPN: NF442L4C
- UPC: 785901871613
- PPN: SCH-NF442L4C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1556.29/ EA
Description
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 400A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 42 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 1/0 AWG to 750 kcmil aluminum wire. The interior is 52 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.
Specifications
Complementary
- Height
- 52 in
- Tightening Torque
- 31.07-33.90 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 31.07-33.90 N.m 53.48-177.3 mm² AWG 1/0...350 kcmil) || 62.14-62.14 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 62.14-62.14 N.m 53.48-152 mm² AWG 1/0...300 kcmil) || 42.37-42.37 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 42.37-42.37 N.m 53.48-152 mm² AWG 1/0...300 kcmil)
- Number Of Spaces
- 42
- Network Number Of Phases
- 3 phases
- Enclosure Nominal Depth
- 5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
- Width
- 10.44 in
- Enclosure Nominal Width
- 20 in
Connections - Terminalslug line AWG 1/0...750 kcmil aluminum || lug neutral AWG 1/0...750 kcmil aluminum
[Iu] Rated Interrupted Current65 kA
Enclosure Nominal Height68 in || 56 in
Net Weight26.76 kg
[In] Rated Current400 A
Wiring Configuration4-wire
[Ue] Rated Operational Voltage600Y/347 V AC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404020EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Specifications
- Circuit Breaker Type
- EDB/EDG/EDJ
- Loadcentre Type
- Main lugs
Materialcopper
Environment
- Standards
- CSA C22.2 || UL 67
