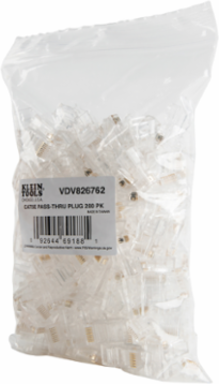

Klein Tools VDV826-762 Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack

Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
Pass-Thru™ Modular Data Plugs, RJ45-CAT5e, 200-Pack
  • MPN: VDV826-762
  • UPC: 092644691881
  • PPN: KLT-VDV826-762
  • UNSPSC: 39121449

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$86.55/ EA

Description

Exclusive Klein-designed Pass-Thru™ CAT5e modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials.

Features

  • Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

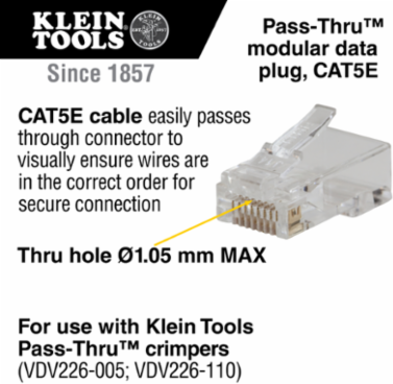

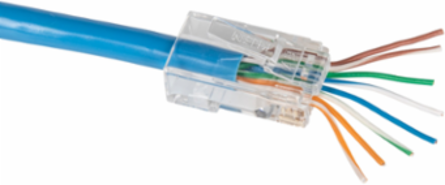

  • CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

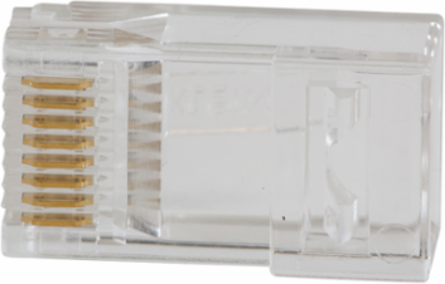

  • 50 µ-inch minimum gold plating on all contact surfaces
  • Category 5e performance per EIA/TIA B.2. and RoHS compliant

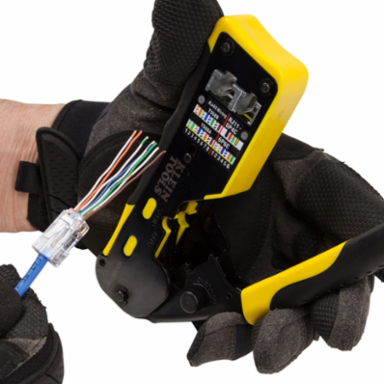

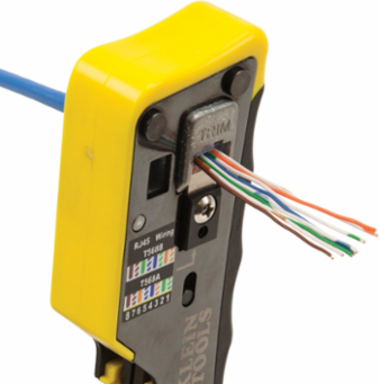

  • For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
  • 200-Pack
  • 8 position, 8 contact Pass Through style data plug for solid or stranded cable
  • Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)
  • Pass-Thru Technology

Specifications

Specifications

Type
Modular
Connector Type
RJ45
Solid Conductor Wire
Yes
Package Quantity
200
Cable Type
CAT5e
Overall Width (cm)
0.2
Overall Height (cm)
1.2
Overall Width (Inch)
0.094
Overall Length (Inch)
0.875
Height
0.0920 in
Depth
0.8800 in
ApplicationVoice and Data
MaterialPVC Plastic; Gold Plated Contacts
Stranded Conductor WireYes
Position & Contacts8P 8C
Connector ColorClear
Overall Height (Inch)0.453
Overall Length (cm)2.2
Weight (g)278
Weight (oz)9.8
Width0.4500 in
Weight0.6200 lbs
