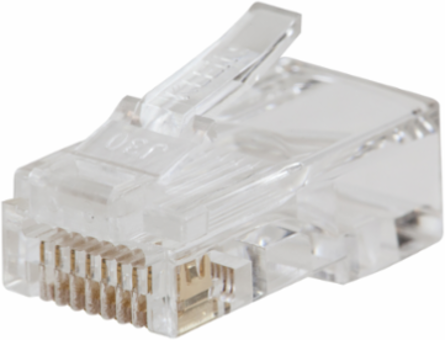

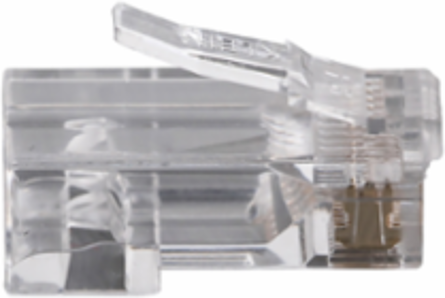

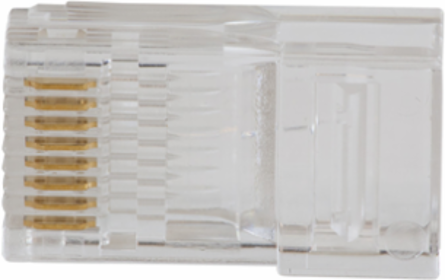

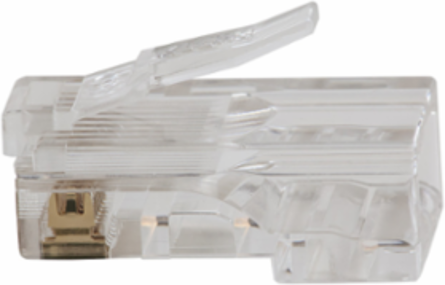

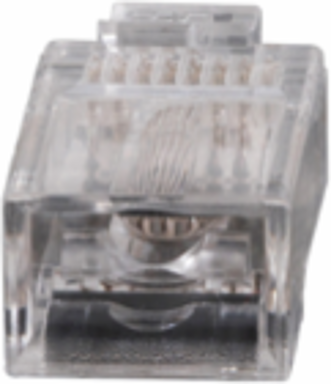

Klein Tools VDV826-729 Pass-Thru RJ45 CAT6 Modular Data Plugs, 10-Pack, 8 Position, 8 Contact
- MPN: VDV826-729
- UPC: 092644690921
- PPN: KLT-VDV826-729
- UNSPSC: 39121449
CAD
$15.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. These CAT6 connectors are fully compliant with all PoE standards. Use with Klein Tools Pass-Thru™ Modular Crimper, VDV226-110.
Features
- Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

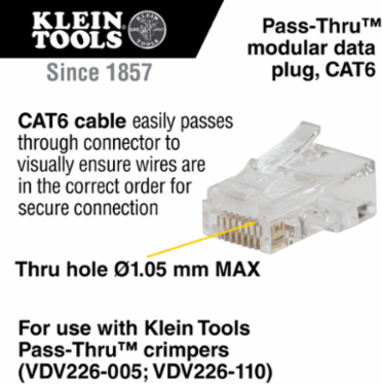

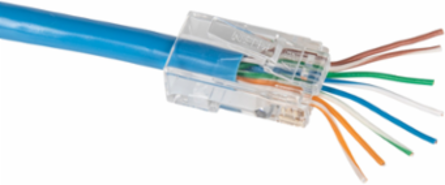

- CAT6 Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
- 50 µ-inch minimum gold plating on all contact surfaces
- Fully compliant with Power Over Ethernet (PoE and PoE+) standards
- Category 6 performance per EIA/TIA B.2.and RoHS compliant
- For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
- 10-Pack
- 8 position, 8 contact Pass Through style data plug for solid or stranded cable
- Pass-Thru Technology; Meets All PoE Standards
Documentation & Downloads
Specifications
Key Specifications
| Package Quantity | 10 |
|---|---|
| Stranded Conductor Wire | Yes |
| Connector Type | RJ45 |
| Position & Contacts | 8P 8C |
| Connector Color | Clear |
| Overall Width (cm) | 0.2 |
| Overall Height (cm) | 1.2 |
| Overall Width (Inch) | 0.094 |
| Overall Length (Inch) | 0.875 |
| Height | 0.0920 in |
| Depth | 0.8850 in |
| Application | Voice and Data |
|---|---|
| Material | PVC Plastic; Gold Plated Contacts |
| Solid Conductor Wire | Yes |
| Cable Type | CAT6 |
| Type | Modular |
| Overall Height (Inch) | 0.453 |
| Overall Length (cm) | 2.2 |
| Weight (g) | 28 |
| Weight (oz) | 1 |
| Width | 0.4590 in |
| Weight | 0.0060 lbs |
