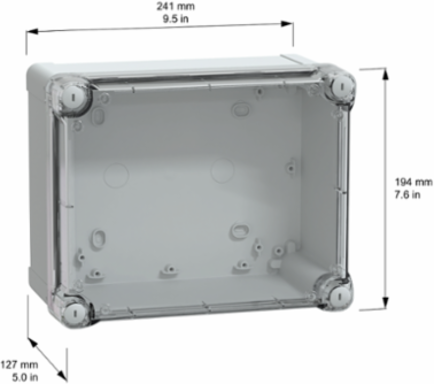

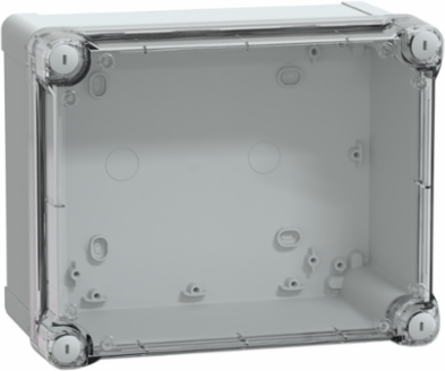

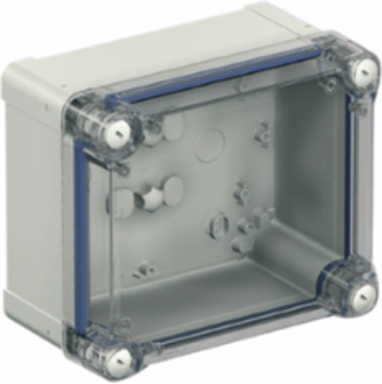

Schneider Electric NSYTBP241912HT Thalassa TBP Industrial Box, IP66, 241mm Height, 194mm Width, 127mm Depth
- MPN: NSYTBP241912HT
- PPN: SCH-NSYTBP241912HT
CAD
$134.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric NSYTBP241912HT Thalassa TBP Industrial Box provides a robust solution for protecting electrical components in demanding environments. With an IP66 rating, it ensures excellent protection against dust and water ingress, making it ideal for both indoor and outdoor applications. Measuring 241mm in height, 194mm in width, and 127mm in depth, this industrial box is designed to house a variety of electrical installations securely and efficiently. The thoughtful design encourages easy installation while delivering dependable durability, making it an essential choice for professionals in electrical and industrial sectors.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Hungary |
|---|
| Depth | 127 mm |
|---|
Physical Attributes
| Color | Gray RAL 7035), Transparent |
|---|---|
| Internal Height | 225 mm |
| Internal Depth | 120 mm |
|---|---|
| Internal Width | 175 mm |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 body, 1 cover4 cover screw |
| Carbon Footprint Of The Distribution Phase [A4] | 1.7073775079075293, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.16985671658347767, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2025-09-16 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Cover Fixing | plastic screws |
| Electrical Insulation Class | class II |
| Energy Efficiency Optimized | False |
| Lock Type | captive screw flat outside sealed area |
| Mounting Location | outdoor (with canopy or shelter and anticondensation valve) |
| Product Name | PanelSeT TBP |
| Range | PanelSeT |
| Returnability | No |
| Sustainable Packaging | No |
| Type Of Front Cover | high transparent cover |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Hungary, HU |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 241 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3925900000 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | TÜV, UL |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.1154411026940445 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 5 kg CO2 eq., 4.9010255160683 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2012016EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Body Type | one piece moulded |
| Device Application | multi-purpose |
| Enclosure Mounting | wall mounted |
| Fire Resistance | 960 °C |
| Material | polycarbonate |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | industrial box |
| Removable Parts | cover by captive screws |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 8 kg CO2 eq. |
| Pep Code | ENVPEP2012016EN |
| Pep Verification Date | 2024-08-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Width Nominal | 194 mm |
| Package Weight(Lbs) | 860.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -15-60 °C, -15-60 °C |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 7.893700843253351 |
| Environmental Disclosure | ENVPEP2012016EN |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-08-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Operation | -25-80 °C, -25-80 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2012016EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2012016EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | industrial box |
|---|
ETIM
| ETIM 8 | EC000058 |
|---|
| ETIM 9 | EC000058 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
