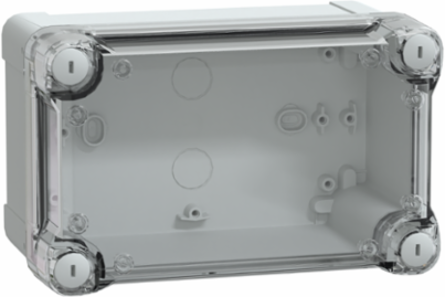

Schneider Electric NSYTBP191210HT Thalassa TBP Outdoor IP66 Industrial Box, 192mm H x 121mm W x 105mm D

MPN: NSYTBP191210HT
PPN: SCH-NSYTBP191210HT

$62.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This robust outdoor industrial box from Schneider Electric is engineered to provide exceptional protection in demanding environments. Measuring 192mm in height, 121mm in width, and 105mm in depth, it features an IP66 rating, ensuring that it is dust-tight and can withstand heavy water exposure. Designed specifically for outdoor use, this enclosure is ideal for housing and safeguarding electrical components from the elements, making it a reliable choice for various applications in the electrical industry. The Thalassa TBP series embodies durability and functionality, making it a critical asset for any industrial setup.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Hungary

Depth	105 mm

Physical Attributes

Color	Gray RAL 7035), Transparent
Internal Height	175 mm

Internal Depth	100 mm
Internal Width	105 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 body, 1 cover4 cover screw
Carbon Footprint Of The Distribution Phase [A4]	0.9708227922869556, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.09658131908060533, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Cover Fixing	plastic screws
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	captive screw flat outside sealed area
Mounting Location	outdoor (with canopy or shelter and anticondensation valve)
Product Name	PanelSeT TBP
Quantity Per Set	set of 2
Removable Parts	cover by captive screws
Software Version	v6.1
Total Lifecycle Carbon Footprint	4 kg CO2 eq.
Pep Code	ENVPEP2012016EN
Pep Verification Date	2024-08-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal	121 mm
Package Weight(Lbs)	489.000 g
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Certificate Agency	TÜV, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.6 kg CO2 eq., 0.6342449990899858
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	3 kg CO2 eq., 2.786745903903952
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2012016EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1926
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	one piece moulded
Device Application	multi-purpose
Enclosure Mounting	wall mounted
Fire Resistance	960 °C
Material	polycarbonate
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	industrial box
Range	PanelSeT
Returnability	No
Sustainable Packaging	No
Type Of Front Cover	high transparent cover
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Hungary, HU
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal	192 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	3925900000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage	-15-60 °C, -15-60 °C
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	4.488395014361499
Environmental Disclosure	ENVPEP2012016EN
Ip Degree Of Protection	IP66 conforming to NEMA 4.4X
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-08-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation	-25-80 °C, -25-80 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2012016EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2012016EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
