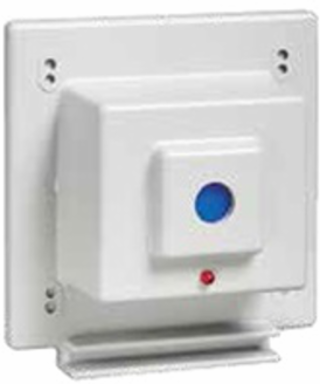

Littelfuse PCR12 PCR12 - PCR Series
- MPN: PCR12
- UPC: 079458997767
- PPN: LTF-PCR12
CAD
$745.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation When the amount of light sensed falls below the actuation level for energization, the output relay energizes. Conversely, when the amount rises above the actuation level for de-energization, the output relay de-energizes.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 230VAC
- Input AC Line Frequency (Hz)
- 50/60Hz
- Light Actuation Levels (fc)
- Energized: ≥35fc; De-energized: ≤60fc
- Operating Temperature
- -40° to 60° C (-40° F to 140° F)
- Mounting Method
- Photo control without aluminum box
- Dimensions
- ABS plastic housing with gasket seal. Multiple knockout holes for optional mounting to Crouse Hinds or Hughey and Phillips cast aluminum electrical boxes.
Input Tolerance (%)-20% - 10%
Output FormTwo SPST NO 20A contacts; 1hp @ 120VAC 2.5hp @ 240VAC
IndicationLED indicates power is applied
Storage Temperature (F/C)-55° to 85°C (-67°F to 185°F)
Termination TypeScrew terminals for up to #8 (M4 x 0.7) AWG wire
Sample capableNo
