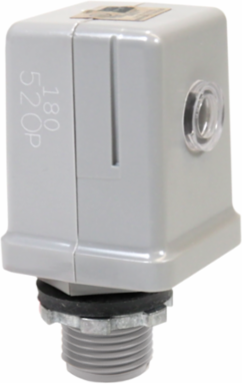

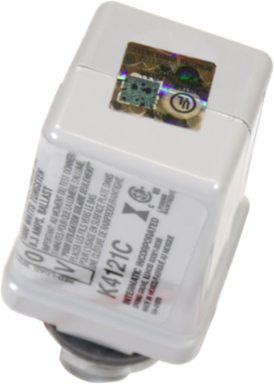

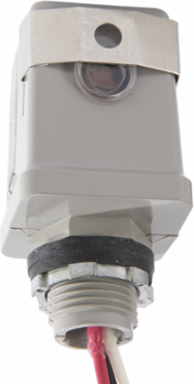

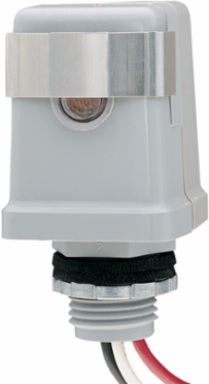

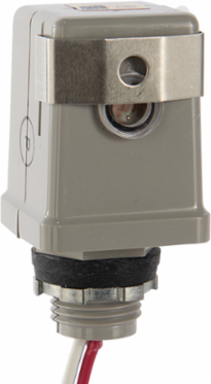

Intermatic K4121C Thermal Photocontrol, 120 V, 1/2 Inch Thread for Outdoor Lighting
- MPN: K4121C
- UPC: 078275002012
- PPN: INT-K4121C
- UNSPSC: 39121524
CAD
$25.30
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These photocontrols install on standard outdoor light fixtures and electrical boxes with 1⁄2"-14 NPSM thread or 7⁄8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.
Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Delay feature prevents unwanted OFF switching
- Gray plastic housing
- 1⁄2"-14 NPSM threaded stem
- Washer gasket and locking nut included
- #18 AWG, 9" wire leads
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 VAC, 50/60 Hz
- Load Rating Magnetic Ballast
- 8.3 A, 1000 VA
- Photocell Type
- Cadmium Sulfide
- Activation On
- 1 to 5 fc
- Temperature Range
- -40 °F to 158 °F
- Height
- 3 in
- Depth
- 1.563 in
- Housing Material
- Polycarbonate
- Country of Origin
- Mexico
- Applications
- Outdoor Lighting Control
- CSA Certification
- cCSAus
- Usage Environment
- Outdoor
Load Rating Tungsten15 A, 1800 W
Switch TypeMechanical Bimetal
Sensor Time Delay30 to 90 sec
Activation Off3 to 15 fc
Stem Thread Size1/2"-14 NPSM
Width1.563 in
Wire Lead Length9 in
ColorGray
Warranty Period2-Year limited
UL CertificationcULus
UL StandardUL 773
