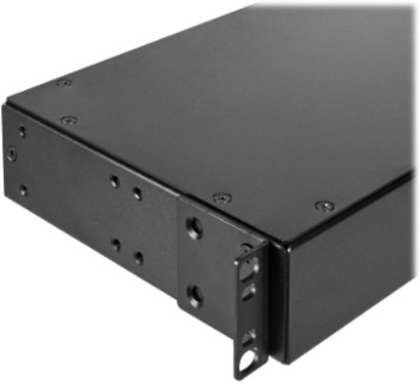

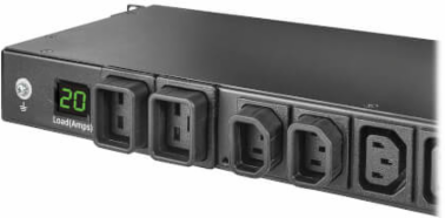

Tripp Lite PDUMH20HVL66 3.7kW 208/230V Single-Phase Local Metered PDU - 8 C13 & 2 C19 Outlets, L6-20P Input, 6 ft. Cord, 1U, TAA

MPN: PDUMH20HVL66
UPC: 037332255785
PPN: TRP-PDUMH20HVL66

$431.44

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

3.7kW 208/230V Single-Phase Local Metered PDU - 8 C13 & 2 C19 Outlets, L6-20P Input, 6 ft. Cord, 1U, TAA

Features

PDUMH20HVL66 3.7kW Single-Phase Local Metered PDU
(10) Plug-lock insert sleeves
Rack-mounting hardware
Owner's manual

Documentation & Downloads

Specifications

Dimensions

PDU Plug Type	NEMA L6-20P
Input Cord Length	6 ft
Output Receptacles	(8) C13; (2) C19
Form Factors Supported	1U rackmount. Includes mounting accessories for 2-4 post racks
PDU Form Factor	Horizontal (1U)
Unit Weight	6.8 lb

Input Cord Details	Attached L6-20P plug
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords

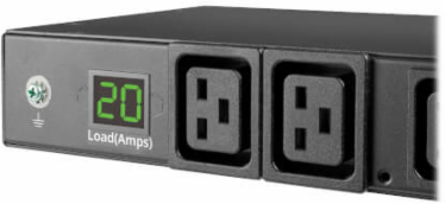

Front Panel LCD Display	Digital display reports total PDU output current in amps
Minimum Required Rack Depth	9.5 in
Unit Dimensions	1.750 x 17.500 x 6.500 in
Grounding	Rear grounding lug

Performance

PDU Type	Local Metered
PDU Input Voltage	208/230V
Maximum Input Amps	16A (Agency de-rated to 16A continuous)
Output Capacity Details	3.7kW (230V), 3.33kW (208V) / 16A total capacity; 16A max per C19 outlet
Output Nominal Voltage	208/230V
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Operating Elevation	0-10000 ft. (0-3000 m)

Input Phase	Single-Phase
Recommended Electrical Service	Single-phase 20A 208/230V service
Output Capacity	3.7 kW
Frequency Compatibility	50 / 60 Hz
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	5% to 95% non-condensing
