Tripp Lite PDUMH15-6 1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 6ft Cord, 1U Rack-Mount

1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 6ft Cord, 1U Rack-Mount - https://media.province-electric.com/tripplite/2020q1/82421cc8cbc0bf67d591e61f414ac6fab2a0689b-medium.png

1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 6ft Cord, 1U Rack-Mount

MPN: PDUMH15-6
UPC: 037332182883
PPN: TRP-PDUMH15-6

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$276.43/ EA

Qty:

Loading add to cart quantity...

Description

1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 6ft Cord, 1U Rack-Mount

Features

Metered single phase 15A 120V PDU
1U horizontal rackmount, Digital current meter

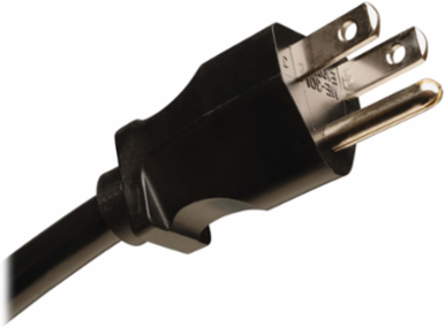

NEMA 5-15P input with 6ft / 1.8m line cord
13 NEMA 5-15R outlets (1 front / 12 rear)
Reversible housing, 4.5 in / 11.4cm depth
2-year limited warranty

Specifications

Certifications

Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant

Physical

Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation

Minimum Required Rack Depth (inches): 7.5

PDU Form Factor: Horizontal (1U)

Shipping Weight (lbs.): 4.30

Unit Weight (lbs.): 4.5

Material of ConstructionMetal

Outlets Measurement (Center to Center)Rear Side = 30.20mm

Shipping Dimensions (hwd / in.)2.40 x 9.30 x 20.60

Unit Dimensions (hwd / in.)1.75 x 17.5 x 4.5

User Interface, Alerts & Controls

Front Panel LCD Display: Digital display reports total PDU output current in amps

Switchesn/a

Input

PDU Input Voltage: 100; 120; 127

Maximum Input Amps: 15

PDU Plug Type: NEMA 5-15P

Input Cord Length (ft.): 6

Recommended Electrical Service15A 120V

Maximum Input Amps DetailsAgency de-rated to 12A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (13) 5-15R

Overload Protection: 15A circuit breaker

Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet

Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)

Relative Humidity5-95% non-condensing

Overview

UPC Code: 037332182883

PDU TypeMetered

Special Features

TVSS Grounding: Rear grounding lug

Warranty

Product Warranty Period (Worldwide): 2-year limited warranty
