Tripp Lite PDUMNH30HVAT2 5.8kW 208/240V Single-Phase ATS/Monitored PDU - 16 C13, 2 C19 & 1 L6-30R Outlets, Dual L6-30P Inputs, 10 ft. Cords, 2U, TAA

MPN: PDUMNH30HVAT2
UPC: 037332261434
PPN: TRP-PDUMNH30HVAT2

$2471.07

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

5.8kW 208/240V Single-Phase ATS/Monitored PDU - 16 C13, 2 C19 & 1 L6-30R Outlets, Dual L6-30P Inputs, 10 ft. Cords, 2U, TAA

Features

Configuration cable, USB-A to USB Micro-B
Rack-mounting hardware
Installable plug-retention sleeves
Cable ties
Owner's manuals

Documentation & Downloads

Specifications

Performance

PDU Type	Auto-Transfer Switch; Local Metered; Monitored
PDU Input Voltage	200V; 208V; 240V
Maximum Input Amps	30A
Output Capacity	5.8kW
Frequency Compatibility	50 / 60 Hz
Operating Temperature Range	32° to 104°F (0° to 40°C)
Relative Humidity	5% to 95% non-condensing
SNMP Compatibility	Yes
Network Speed Details	10 / 100

Input Phase	Single-Phase
Recommended Electrical Service	30A 208V
Maximum Input Amps Details	Agency de-rated to 24A continuous
Output Capacity Details	5kW (208/240V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 24A max per L6-30R outlet; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage	200V; 208V; 240V
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Operating Elevation	0-10000 ft. (0-3000 m)
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
PowerAlert Software	LX Platform Interface: PowerAlert Device Manager

Dimensions

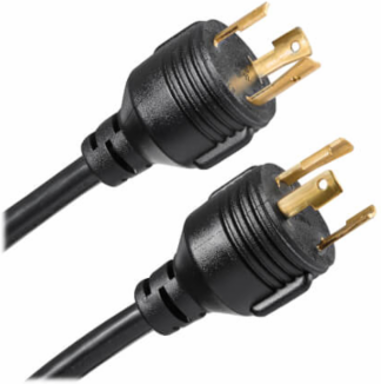

PDU Plug Type	(2) NEMA L6-30P
Input Cord Length	10 ft

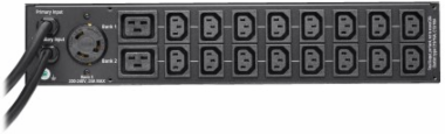

Output Receptacles	(16) C13; (2) C19; (1) L6-30R
Switches	ENTER and MODE switches toggle the digital display to show output amps (Banks 1-4), total kW output and input voltage (primary, secondary), and IP address
Form Factors Supported	2U rackmount
PDU Form Factor	Horizontal (2U)
Unit Weight	13.7 lb
Communications Interface	(1) DB9 Serial; (1) Micro-USB; (1) Pre-installed network card; (1) RJ45 Network; (1) USB-A

Input Cord Details	Set of two inputs connect to separate PRIMARY and SECONDARY power sources
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords

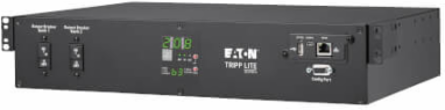

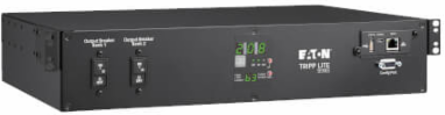

Front Panel LCD Display	Digital display reports output amps in 4 separately metered loading segments (BANK 1: Outlets #1-9; BANK 2: Outlets #10-18; BANK 3: Outlet #19), whole-PDU output kW load level and input voltage on primary and secondary input lines, and IP address. Temp and Humidity will display if optional Envirosense2 modules are attached
LED Indicators	Front panel LEDs confirms amp / kilowatt / voltage reporting information along with active primary and secondary input source status
Minimum Required Rack Depth	16 in
Unit Dimensions	3.500 x 17.500 x 12.500 in
Communications Cable	Micro-USB- to-USB A configuration/console Access cable
