Tripp Lite PDUMH20-6 1.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-20P/5-20P input, 6ft Cord, 1U Rack-Mount

1.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-20P/5-20P input, 6ft Cord, 1U Rack-Mount - https://media.province-electric.com/tripplite/2020q1/89fbb309ece08b20b225f818da7d94e5952a7131-medium.png

1.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-20P/5-20P input, 6ft Cord, 1U Rack-Mount

MPN: PDUMH20-6
UPC: 037332183255
PPN: TRP-PDUMH20-6

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$424.98/ EA

Qty:

Loading add to cart quantity...

Description

1.9kW Single-Phase Metered PDU, 120V Outlets (12 5-15/20R), L5-20P/5-20P input, 6ft Cord, 1U Rack-Mount

Features

Metered single phase 20A 120V PDU
1U horizontal rackmount; Digital current meter

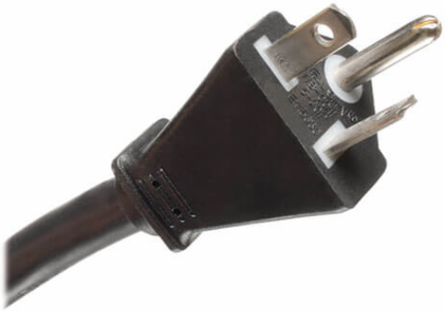

NEMA 5-20P / L5-20P input; 6 ft. / 1.8m line cord
12 NEMA 5-15/20R outlets
Reversible housing; 4.5 in. / 11.4 cm depth
2-year limited warranty

Specifications

Certifications

Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant

Physical

Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation

Minimum Required Rack Depth (inches): 8.8

PDU Form Factor: Horizontal (1U)

Shipping Weight (lbs.): 5.00

Unit Weight (lbs.): 4.6

Material of ConstructionMetal

Outlets Measurement (Center to Center)30.20mm

Shipping Dimensions (hwd / in.)2.20 x 9.30 x 20.50

Unit Dimensions (hwd / in.)1.75 x 17.5 x 3.75

User Interface, Alerts & Controls

Front Panel LCD Display: Digital display reports total PDU output current in amps

Switchesn/a

Input

PDU Input Voltage: 100; 120; 127

Maximum Input Amps: 20

PDU Plug Type: NEMA 5-20P; NEMA L5-20P

Input Cord Length (ft.): 6

Recommended Electrical Service20A 120V

Maximum Input Amps DetailsAgency de-rated to 16A continuous

Input PhaseSingle-Phase

Output

Frequency Compatibility: 50 / 60 Hz

Output Receptacles: (12) 5-15/20R

Overload Protection: 20A circuit breaker

Output Capacity Details2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet

Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)

Relative Humidity5 to 95% non-condensing

Overview

UPC Code: 037332183255

PDU TypeMetered

Special Features

TVSS Grounding: Back panel grounding lug

Warranty

Product Warranty Period (Worldwide): 2-year limited warranty
