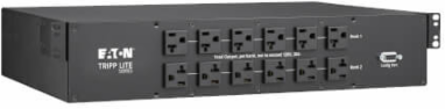

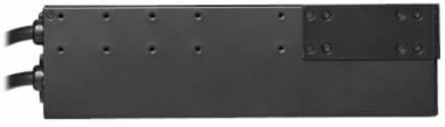

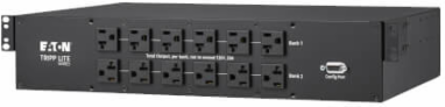

Tripp Lite PDUMNH30AT2 2.9kW 120V Single-Phase ATS/Monitored PDU - 24 5-15/20R & 1 L5-30R Outlets, Dual L5-30P Inputs, 10 ft. Cords, 2U, TAA
- MPN: PDUMNH30AT2
- UPC: 037332261427
- PPN: TRP-PDUMNH30AT2
CAD
$2162.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2.9kW 120V Single-Phase ATS/Monitored PDU - 24 5-15/20R & 1 L5-30R Outlets, Dual L5-30P Inputs, 10 ft. Cords, 2U, TAA
Features
- Configuration cable, USB-A to USB Micro-B
- Rack-mounting hardware
- (4) Cord retention brackets
- (24) Cable ties
- Owner's manual
Documentation & Downloads
Specifications
Performance
- PDU Type
- Auto-Transfer Switch; Monitored
- PDU Input Voltage
- 120V
- Maximum Input Amps
- 30A
- Output Capacity
- 3.05kW
- Frequency Compatibility
- 50 / 60 Hz
- Overload Protection
- Two 20A output breakers protect 12 5-15/20R outlets each
- Storage Temperature Range
- -22° to 122°F (-30° to 50°C)
- Operating Elevation
- 0-10000 ft. (0-3000 m)
- PowerAlert Software
- LX Platform Interface: PowerAlert Device Manager
Input PhaseSingle-Phase
Recommended Electrical Service30A 120V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Output Capacity Details3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 24A max per L5-30R outlet; 20A max per breakered load bank; 16A max per 5-15/20R outlet
Output Nominal Voltage100V; 120V; 127V
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative Humidity5% to 95% non-condensing
Network Compatibility10 Mbps; 100 Mbps (Fast Ethernet)
Dimensions
- PDU Plug Type
- (2) NEMA L5-30P
- Input Cord Length
- 10 ft
- Front Panel LCD Display
- Digital display reports output amps and kW in 4 separately metered loading segments (BANK 1: 5-20R outlets #1-12; BANK 2: 5-20R outlets #13-24; BANK 3: L5-30R outlet #25; BANK 4: Total PDU output), whole-PDU output kW load level and input voltage on primary and secondary input lines, and IP address assignment. Temperature and/or Humidity displayed with optional Environsense2 modules
- LED Indicators
- 2 LEDs for power status on Primary and Secondary input connection and three additional LEDs to label the displayed numeric value as Amps, kW or Voltage
- Minimum Required Rack Depth
- 16.9 in
- Unit Dimensions
- 3.410 x 17.320 x 11.890 in
- Communications Cable
- Micro-USB- to-USB A configuration/console Access cable
Input Cord DetailsSet of two inputs connect to separate PRIMARY and SECONDARY power sources
Output Receptacles(24) 5-15/20R; (1) L5-30R
SwitchesENTER and MODE switches toggle the digital display to show output amps (Banks 1-4), total kW output and input voltage (primary, secondary)
Form Factors Supported2U rackmount
PDU Form FactorHorizontal (2U)
Unit Weight13.71 lb
GroundingRear grounding lug
Reference
- Product Warranty Period
- 2-year limited warranty
Material
- Material of Construction
- Metal
