Tripp Lite PDUMV30NETLX 2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord with L5-30P, 0U, TAA
Tripp Lite PDUMV30NETLX 2.9kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (24 5-15/20R), 10 ft. Cord with L5-30P, 0U, TAA
- MPN: PDUMV30NETLX
- UPC: 037332204462
- PPN: TRP-PDUMV30NETLX
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1986.67/ EA
Description

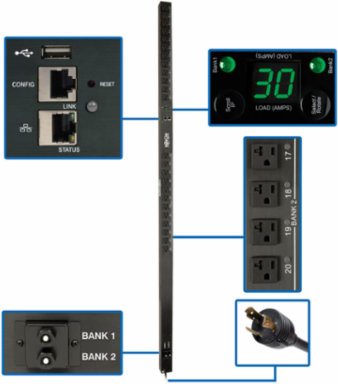

2.9kW vertical PDU distributes, monitors and manages single-phase power in an IT or industrial environment. Built-in network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
Features
- 2.9kW 120V switched PDU
- 24 individually controllable NEMA 5-15/20R outlets
- Built-in LX Platform interface for 24/7 remote access
- Digital ammeter for on-site load monitoring in real time
- NEMA L5-30P input with 10 ft. AC power cord
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Distributes Network-Grade Single-Phase Power
- 24 Switched Outlets Distribute AC Power
- Digital Ammeter
- Built-In LX Platform Interface
- Broad Communications Compatibility
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Easy 0U Installation in EIA-Standard 19 in. Racks
- TAA-Compliant
Specifications
Certifications
- Certifications
- Tested to UL 60950-1: 2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), FCC Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported

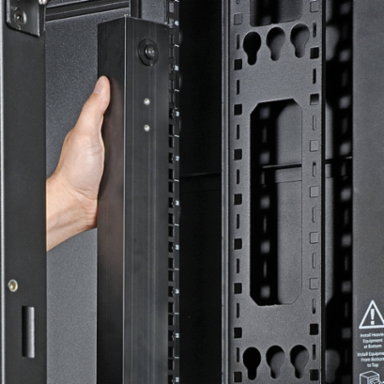

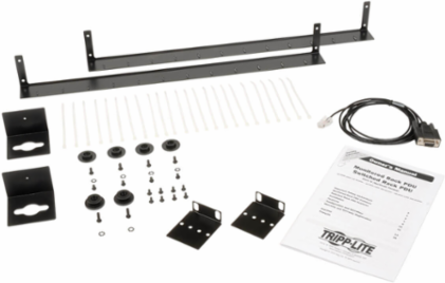

- 0U vertical rackmount; includes rackmount brackets. Supports tooless mounting in button-mount compatible racks
- Shipping Dimensions (hwd / in.)
- 4.00 x 6.00 x 72.50
- Unit Dimensions (hwd / in.)
- 70 x 2.19 x 2.65
PDU Form FactorVertical (0U)
Shipping Weight (lbs.)16.50
Unit Weight (lbs.)14.1
User Interface, Alerts & Controls
- Front Panel LCD Display

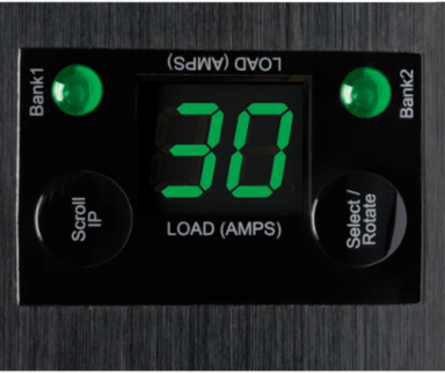

- Digital display reports output amps in 3 separately metered loading segments (BANK 1: Outlets #1-12; BANK 2: Outlets #13-24; BANK 3: All outlets combined)
- Switches
- Pushbutton scroll button enables local power consumption display of each load bank, display rotate and display IP address functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset
Front Panel LEDs24 power availability LEDs confirm power off/on status for each built-in outlet. Network Link/Activity Status LED (Yellow), Network Speed LED (Green); LX Platform status LED (Green)
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 30
- PDU Plug Type

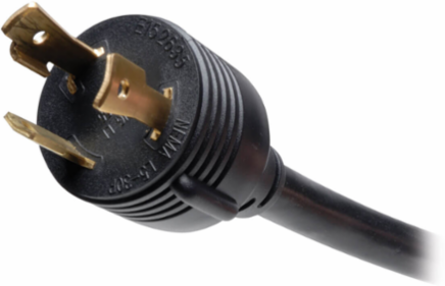

- NEMA L5-30P
- Input Cord Length (ft.)
- 10
Recommended Electrical Service30A 120V
Maximum Input Amps DetailsAgency de-rated to 24A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles

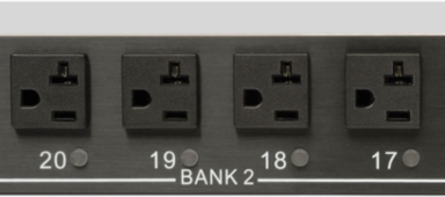

- (24) 5-15/20R
- Overload Protection

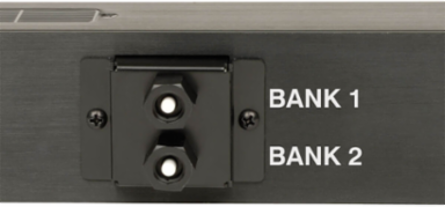

- Two 20A breakers protect 12 outlets each
Output Capacity Details3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet
Output Nominal Voltage100; 120; 127
Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface
Communications
- Network Monitoring Port

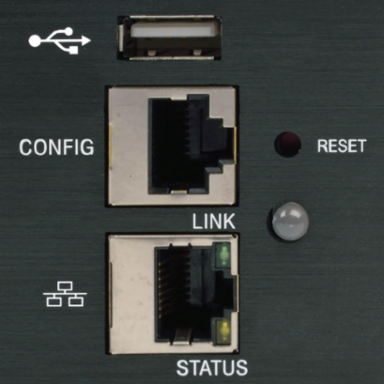

- RJ45 Network port, RJ45 Config/Console Access port; USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP CompatibilityPre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +60°C (-22°F to +140°F)
Relative HumidityUp to 95% non-condensing
Overview
- UPC Code
- 037332204462
PDU TypeSwitched
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
