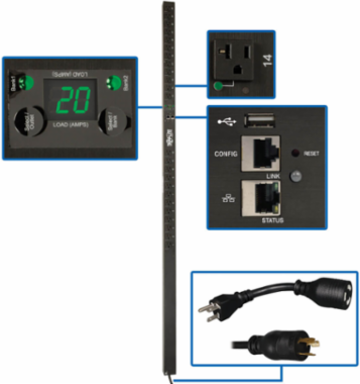

Tripp Lite PDUMVR20NETLX 1.9kW Single-Phase Switched PDU, LX Platform, Outlet Monitoring, 120V Outlets (24 NEMA 5-15/20R), L5-20P Plug, 0U, TAA
Tripp Lite PDUMVR20NETLX 1.9kW Single-Phase Switched PDU, LX Platform, Outlet Monitoring, 120V Outlets (24 NEMA 5-15/20R), L5-20P Plug, 0U, TAA
- MPN: PDUMVR20NETLX
- UPC: 037332204141
- PPN: TRP-PDUMVR20NETLX
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2558.90/ EA
Description
1.9kW vertical PDU with individual outlet metering distributes, monitors and manages single-phase power. Built-in Java-free network interface helps you remotely monitor load levels to prevent overloads that cause downtime.
Features
- 1.9kW 120V single-phase switched 70-inch 0U PDU
- 24 controllable NEMA 5-15/20R outlets in 2 load banks
- Built-in Java-free LX Platform interface for 24/7 remote access
- Auto Probe for Autonomous Device Management
- Digital ammeter for on-site load monitoring in real time

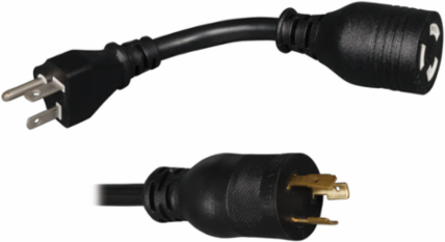

- 10 ft. power cord with NEMA L5-20P plug and 5-20P adapter
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year limited warranty
- Distributes, Monitors and Manages Network-Grade AC Power
- 24 NEMA 5-15/20R Switched Outlets Distribute AC Power
- Digital Ammeter
- Built-In LX Platform Interface
- Broad Communications Compatibility
- Reduce Service Calls with Auto Probe Autonomous Device Management
- Essential Safety Features
- Easy 0U Installation in EIA-Standard 19 in. Racks
- TAA-Compliant
Specifications
Certifications
- Certifications
- Tested to UL60950-1: 2007 R12.11 (USA), CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011(Canada), FCC CLASS A PART 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Physical
- Form Factors Supported

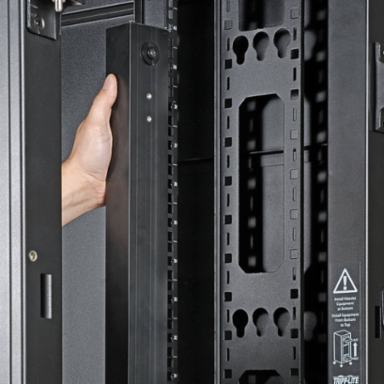

- 0U vertical rackmount; includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
- Shipping Dimensions (hwd / in.)
- 4.53 x 6.10 x 75.78
- Unit Dimensions (hwd / in.)
- 70 x 2.2 x 2.04
PDU Form FactorVertical (0U)
Shipping Weight (lbs.)14.93
Unit Weight (lbs.)9.6
User Interface, Alerts & Controls

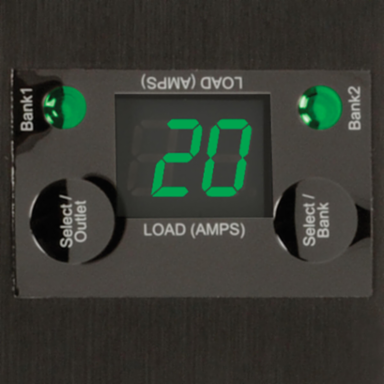

- Front Panel LCD Display
- Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1&2 COMBINED (Outlets 1-24) and each individual output receptacle; Digital display can also be used to scroll the configured IP address
- Switches
- SELECT OUTLET and SELECT BANK switches advance the LCD screen and associated LED to display power consumption for individual output receptacles and output load banks; Press and hold the SELECT BANK button for 4 seconds to rotate the digital display 90 degrees for overhead power input; Press and hold the SELECT OUTLET button for 4 seconds to scroll the configured IP address. LX Platform Interface: Recessed reset switch for interface reboot and factory reset
- Voltage Measurement Accuracy (Volts)
- +/-1%

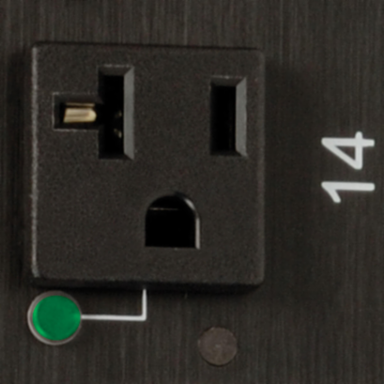

Front Panel LEDsBANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1&2 Combined); BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank; 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle. LX Platform Interface: Network Link/Activity Status LED (Yellow), Network Speed LED (Green); LX Platform status LED (Green)
Current Measurement Accuracy (Amps)+/-1%
Power Measurement Accuracy (Watts)+/-1%
Input
- PDU Input Voltage
- 100; 120; 127
- Maximum Input Amps
- 20
- PDU Plug Type
- NEMA 5-20P; NEMA L5-20P
- Input Cord Length (ft.)
- 10
Recommended Electrical Service20A 120V
Maximum Input Amps DetailsAgency de-rated to 16A continuous
Input PhaseSingle-Phase
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (24) 5-15/20R
- Overload Protection
- n/a
Output Capacity Details2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
Output Nominal Voltage100; 120; 127
Customized Load Management ReceptaclesEach outlet is individually controllable via remote interface
Communications
- Network Monitoring Port

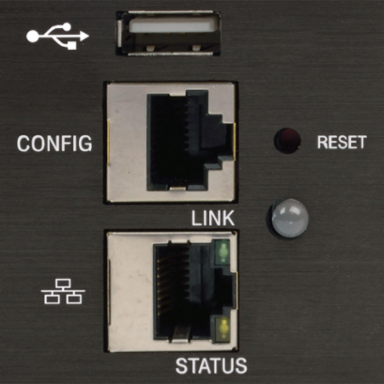

- RJ45 Network port, RJ45 Config/Console Access port; USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP CompatibilityPre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Environmental
- Storage Temperature Range
- -30°C to +60°C (-22°F to +140°F)
Relative Humidity5 to 95% non-condensing
Overview
- UPC Code
- 037332204141
PDU TypeSwitched
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Downloads
