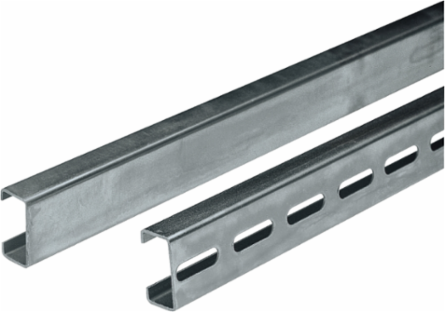

Schneider Electric NSYCNT40 Symmetrical C-shaped Rails 2000mm Length, 40mm Height, Galvanised Steel
Schneider Electric NSYCNT40 Symmetrical C-shaped Rails 2000mm Length, 40mm Height, Galvanised Steel
- MPN: NSYCNT40
- PPN: SCH-NSYCNT40
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$26.51/ EA
Description
Designed for versatility and strength, these symmetrical C-shaped rails from Schneider Electric are crafted from high-quality galvanised steel, ensuring durability and reliability in various applications. Measuring 2000mm in length with a thickness of 1.5mm, these rails are perfect for mounting and supporting equipment within panel building and industrial settings. Each set contains 20 rails, making it an ideal solution for larger projects, while the perforated surface finish allows for efficient fixing and mounting. With an 18-month warranty and a commitment to quality, these rails exemplify the robust engineering that Schneider Electric is known for, making them a dependable choice for your next installation.
Features
- Rails for supporting and fixing switchgear on panels and enclosures,formation of chassis,racks & panel reinforcements.
- Material: Galvanized steel
- Fixing: They are fixed to the structure and to one another by means of fixing elements
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 4 kg CO2 eq., 4.407839257
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 8 kg CO2 eq., 8.147097123
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- galvanised steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 13 kg CO2 eq.
- Medium Desc
- Symmetric C-shaped rails drilled 40x20x24. Length 2000mm. Supply: 20 rails 2m.
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.360934285, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.415751237, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-02-24
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Composition1 rail
Fixing Modeby fixing element
Package Weight Lbs1.900 kg
Product Or Component Typerail
RangePanelSeT
Surface Finishperforated
Thickness1.5 mm
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Type Of Railsymmetrical C-shaped
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 13.3316219
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- rail
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- United States
