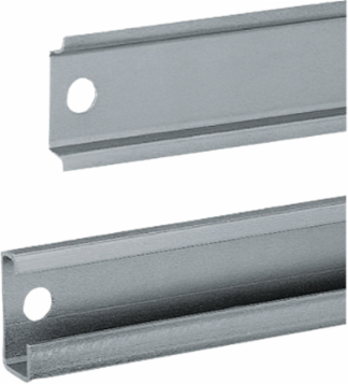

Schneider Electric NSYSDR80A Symmetrical Mounting Rail 35mm x 15mm x 800mm, Set of 20 Rails
Schneider Electric NSYSDR80A Symmetrical Mounting Rail 35mm x 15mm x 800mm, Set of 20 Rails
- MPN: NSYSDR80A
- PPN: SCH-NSYSDR80A
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$41.18/ EA
Description
Crafted from durable zinc-coated steel, this symmetrical mounting rail is designed to meet a variety of multi-purpose applications. With a nominal length of 800 mm and a robust thickness of 1.5 mm, it provides reliable support for your panel setups, ensuring a secure fit with a pitch adjustment of 25 mm for versatile installation options. Each set includes 20 rails, making it an efficient choice for projects that require consistent quality and performance. Compatible with various PanelSeT models, this mounting rail is an essential component for enhancing your enclosure's structure while maintaining a sleek and organized appearance.
Features
- 2 types: Type A: 35 x 15 mm, Type B: 35 x 7.5 mm
- Material: Zinc-coated steel
- Standards: IEC 715
- Thickness: Type A: 15/10e mm, Type B: 10/10e mm
- Fixing: Fixed to mounting plates or another fixing elements, uprights not included in the supply
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rail
- Adjustment
- pitch 25 mm, continuous adjustment
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Fixing Mode
- by fixing element - structure of enclosure
- Package Weight Lbs
- 520.000 g
- Product Or Component Type
- rail
- Range
- PanelSeT
- Surface Finish
- zinc coated
- Thickness
- 1.5 mm
- Medium Desc
- One symmetric mounting rail 35x15 L800mm type A Supply: 20
- Product Kit Identifier
- N
- Type Of Rail
- symmetrical DIN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Materialzinc coated steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 20
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1001004EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- rail
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 0.59 in
- Length
- 29.53 in
Width1.38 in
