Documentation & Downloads
Schneider Electric NSYCN40 Symmetrical C-shaped Rails 2000 mm, Galvanized Steel, Set of 20 Rails
- MPN: NSYCN40
- PPN: SCH-NSYCN40
CAD
$41.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

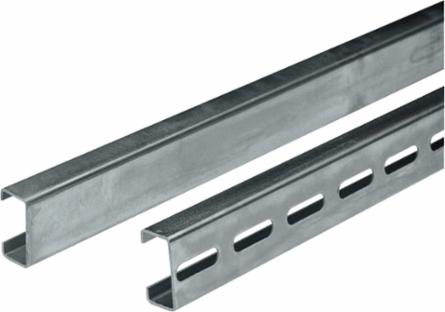

Constructed from durable galvanized steel, these symmetrical C-shaped rails are designed to provide robust support for a variety of applications. Measuring 2000 mm in length and featuring a thickness of 1.5 mm, they are compatible with the PanelSeT and Thalassa ranges, making them versatile mounting accessories for your projects. Each set includes 20 rails, ensuring you have ample material for your installation needs, while the rails' non-perforated surface finish enhances their strength and stability. With an 18-month warranty, these rails are a reliable choice for any multi-purpose application, delivering both quality and performance.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 0.79 in
Height1.57 in
Length78.74 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Publishable Date
- 2026-04-18
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Fixing Mode
- by fixing element
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Rail
- symmetrical C-shaped
- Warranty In Months
- 18
- Height Nominal
- 40 mm
- Length Total
- 2000 mm
- Width Nominal
- 20 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 rail
Materialgalvanised steel
Product Or Component Typerail
RangePanelSeT
Surface Finishnot perforated
Thickness1.5 mm
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP1109023EN
Height Useful40 mm
Length Useful2000 mm
Width Real20 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1109023EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- rail
ETIM
- ETIM 8
- EC001285
ETIM 9EC001285
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
