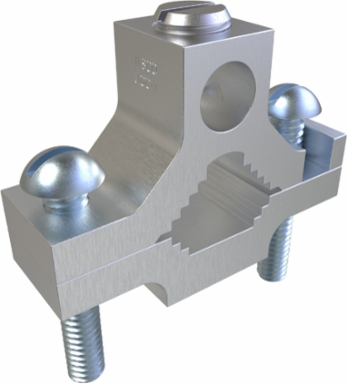

ILSCO AGC-1-B Permaground Aluminum Ground Clamp, Conductor Range 1/0-14, Pipe Sizes 1/2 to 1in, UL, Bag of 1
- MPN: AGC-1-B
- UPC: 783669000610
- PPN: ILC-AGC-1-B
- UNSPSC: 39121408
CAD
$13.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ILSCO Ground Clamp Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 467 Listed, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, pipe size 1/2, 3/4, 1, Drive Type Main Slotted, bag quantity 1,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366900061
- Dual Rated
- TRUE
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Conductor Size AL (Primary, run, main, line)
- 10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
- Clamping Bolt Size
- 1/4/2020
- Wire Binding Torque
- 10 - 14 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2/0 - 2 AWG = 50
- Length (mm)
- 355.6
- Width (mm)
- 101.6
- Height (mm)
- 17.4752
- Material
- Aluminum
- Clamping Hardware Finish
- Zinc Clear Trivalent Chromate
- Connector Finish
- Tin
- Wire Binding Hardware Finish
- Tin
- UL Control Number
- 667P
- UL / CULUS Specification
- UL 467 Listed
- Conductor Type
- Solid,Stranded
- Number of Ports / Wireways
- 1
- Bag Quantity
- 1
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)1/0 Str - 14 Str
Conductor Size CU (Primary, run, main, line)10 Sol,12 Sol,14 Sol,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
NPS/IPS Pipe Size1/2,3/4,1
Drive Type MainSlotted
Length (IN)14
Width (IN)4
Height (IN)0.688
Weight (LB)0.24
Clamping Hardware MaterialSteel
Conductor MaterialCopper,Aluminum
Wire Binding Hardware MaterialAluminum
Direct BurialFALSE
UL File NumberE34440
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Number of Conductors1
Wire OrientationParallel
CrossSellDE-OX-Z-8OZ
