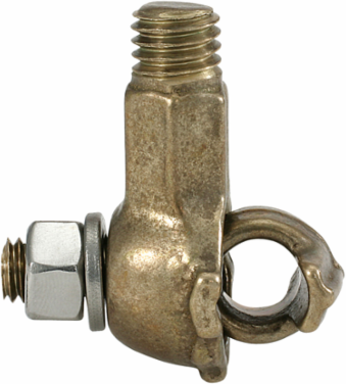

ILSCO TTGC-2TN Permaground Bronze Transformer Tank Ground Connector, Conductor Range 2/0-8 Sol, 1/2-13 Bolt Size, 1-51/64in Height, Tin Plated
- MPN: TTGC-2TN
- UPC: 783669233728
- PPN: ILC-TTGC-2TN
- UNSPSC: 39121408
CAD
$37.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ILSCO Transformer Tank Ground Connector, Mechanical connection, Cast bronze material, Tin plated connector,mounting bolt/stud size 1/2-13 in, Copper/Aluminum Primary Conductor 2/0 Str - 8 Str and 2/0 Sol - 8 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 9/16 External Hex, primary color Bronze,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366923372
- Dual Rated
- FALSE
- Conductor Range CU Solid (Primary, run, main, line)
- 2/0 Sol - 8 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 2/0 Str - 8 Str
- Conductor Size AL (Primary, run, main, line)
- 2/0 Sol,1/0 Sol,1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
- Clamping Bolt Size (mm)
- 965.2
- Drive Type Main
- External Hex
- Number of Wire Binding Screws per Port
- 1
- Width (IN)
- 0
- Weight (LB)
- 0.208
- Material
- Cast bronze
- Conductor Material
- Copper
- Color
- Bronze
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Ports Main
- 1
- Bag Quantity
- 1
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)2/0 Str - 8 Str
Conductor Size CU (Primary, run, main, line)2/0 Sol,1/0 Sol,1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
Conductor Range AL Solid (Primary, run, main, line)2/0 Sol - 8 Sol
Clamping Bolt Size3/8/2020
Drive Size Main16-Sep
Mounting Bolt/Stud Size1/2/2013
Length (IN)0
Height (IN)0
Mounting Bolt/Stud Size (mm)30810.2
Clamping Hardware MaterialSteel
Connector FinishTin
Direct BurialFALSE
RUS ListedTRUE
Conductor TypeSolid,Stranded
Number of Ports / Wireways1
Wire OrientationParallel,Perpendicular
