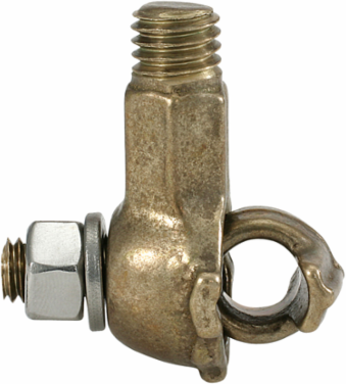

ILSCO TTGC-3 Permaground Bronze Transformer Tank Ground Connector, Conductor Range 1-10 Sol, 1/2-13 Bolt Size, 1-3/8in Height
- MPN: TTGC-3
- UPC: 783669233704
- PPN: ILC-TTGC-3
- UNSPSC: 39121408
CAD
$34.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ILSCO Transformer Tank Ground Connector, Mechanical connection, Cast bronze material, mounting bolt/stud size 1/2-13 in, Copper/Aluminum Primary Conductor 1 Str - 10 Str and 1 Sol - 10 Sol, 1 conductors, 1 ports/wireways, Drive Type Main 9/16 External Hex, primary color Bronze,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366923370
- Dual Rated
- FALSE
- Conductor Range CU Solid (Primary, run, main, line)
- 1 Sol - 10 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 1 Str - 10 Str
- Conductor Size AL (Primary, run, main, line)
- 1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str
- Clamping Bolt Size (mm)
- 965.2
- Drive Type Main
- External Hex
- Number of Wire Binding Screws per Port
- 1
- Width (IN)
- 0
- Weight (LB)
- 0.1525
- Material
- Cast bronze
- Conductor Material
- Copper
- Direct Burial
- FALSE
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Ports Main
- 1
- Bag Quantity
- 1
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)1 Str - 10 Str
Conductor Size CU (Primary, run, main, line)1 Sol,2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str
Conductor Range AL Solid (Primary, run, main, line)1 Sol - 10 Sol
Clamping Bolt Size3/8/2020
Drive Size Main16-Sep
Mounting Bolt/Stud Size1/2/2013
Length (IN)0
Height (IN)0
Mounting Bolt/Stud Size (mm)30810.2
Clamping Hardware MaterialSteel
ColorBronze
Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Conductor TypeSolid,Stranded
Number of Ports / Wireways1
Wire OrientationParallel,Perpendicular
