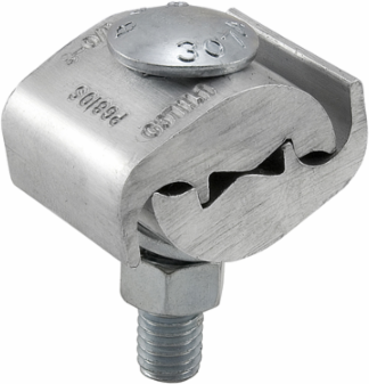

Ilsco PG810-S-Z Aluminum Parallel Groove Clamp, Dual Rated, Conductor Range 1/0-8 Sol, 3/8in Steel Bolt

Aluminum Parallel Groove Clamp, Dual Rated, Conductor Range 1/0-8 Sol, 3/8in Steel Bolt
  • MPN: PG810-S-Z
  • UPC: 0783669730128
  • PPN: ILC-PG810-S-Z

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$21.46/ EA

Specifications

Dimensions

Drive Size Main
9/16
Height BX (IN)
7
Length (mm)
28.575
Width BX (IN)
8
Drive Type MainCarriage
Height (mm)56.0832
Weight BX (LB)11.016
Width (mm)42.5196

Testing Standards

Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Additional Class Attributes

Connection
Mechanical
Number of Conductors
2
Wire Orientation
Parallel
Contains DE-OX®Yes
Number of Poles1

Material and Finish

Clamping Hardware Material
Steel
Connector Finish
Clear
Wire Binding Hardware Finish
Tin
Conductor MaterialAluminum, Copper
MaterialAluminum
Wire Binding Hardware MaterialAluminum

Conductor Ranges

Conductor Range AL Stranded (Primary, run, main, line)
1/0 Str - 8 Str
Conductor Range CU Stranded (Primary, run, main, line)
1/0 Str - 8 Str
Conductor Range CU Solid (Primary, run, main, line)1/0 Sol - 8 Sol
Conductor Range AL Solid (Primary, run, main, line)1/0 Sol - 8 Sol

Additional Technical Specifications

Conductor Type
Solid, Stranded

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-4
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedYes
UPC Code78366973012

Specifications

Height
2.208 in | 56.0832 mm
Weight
0.214 lbs
Length1.125 in | 28.575 mm
Width1.674 in | 42.5196 mm

Bolt and Screw Sizes

Clamping Bolt Size
3/8
Number of Wire Binding Screws per Port1

Color

Color
Silver
