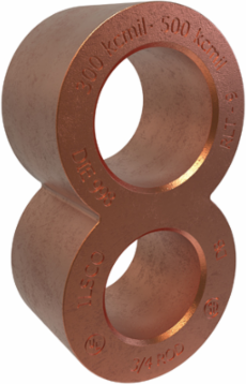

Ilsco RLT-9 Permaground Copper Grounding Connector, Main Conductor Range 500-300, Tap Range 500-300, Ground Rod Size 3/4in, Rebar Sizes #3-#4, UL, CSA
Ilsco RLT-9 Permaground Copper Grounding Connector, Main Conductor Range 500-300, Tap Range 500-300, Ground Rod Size 3/4in, Rebar Sizes #3-#4, UL, CSA
- MPN: RLT-9
- UPC: 0783669715781
- PPN: ILC-RLT-9
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$136.02/ EA
Specifications
Dimensions
- Height BX (IN)
- 4.75
- Length (mm)
- 61.7728
- Width BX (IN)
- 7
Height (mm)34.1376
Weight BX (LB)5.162
Width (mm)22.225
Testing Standards
- CSA File Number
- LR-5465
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 467 Listed
CSA StandardC22.2 No. 41
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Barrel Marking
- Hard
- ILSCOs Die Index Number
- 998, 1011
ILSCOs Die Catalog NumberILD-998
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishBare
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 500 kcmil - 300 kcmil
- Ground Rod Size
- 3/4
Conductor Range CU Stranded (Secondary, tap, load)500 kcmil - 300 kcmil
Rebar Size(s) Main#4 (1/2), #3 (3/8)
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-573-3
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedNo
UPC Code78366971578
Specifications
- Height
- 1.344 in | 34.1376 mm
- Weight
- 0.479137434046916 lbs
Length2.432 in | 61.7728 mm
Width0.875 in | 22.225 mm
Color
- Color
- Copper
