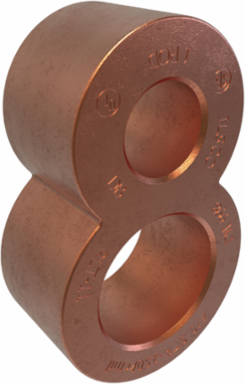

ILSCO RLT-11 Permaground Copper Grounding Connector, Main Conductor Range 250-4/0, Tap Range 250-4/0, Ground Rod Size 1in, UL, CSA
- MPN: RLT-11
- UPC: 783669003581
- PPN: ILC-RLT-11
CAD
$96.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permaground Copper Grounding Connector, Main Conductor Range 250-4/0, Tap Range 250-4/0, Ground Rod Size 1in, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.575 in | 65.405 mm
- Weight
- 0.59196274733323 lbs
Length1.6 in | 40.64 mm
Width0.875 in | 22.225 mm
Dimensions
- Height BX (IN)
- 3
- Length (mm)
- 40.64
- Width BX (IN)
- 10.5
Height (mm)65.405
Weight BX (LB)12.102
Width (mm)22.225
Testing Standards
- CSA File Number
- LR-5465
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 467 Listed
CSA StandardC22.2 No. 41
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Barrel Marking
- Hard
- ILSCOs Die Index Number
- 1011, 998
ILSCOs Die Catalog NumberILD-998
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishBare
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 250 kcmil - 4/0 Str
- Ground Rod Size
- 1
Conductor Range CU Stranded (Secondary, tap, load)250 kcmil - 4/0 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-573-3
Carton Quantity DescriptionSTD PACK QTY 20
Dual RatedNo
UPC Code78366900358
Color
- Color
- Copper
