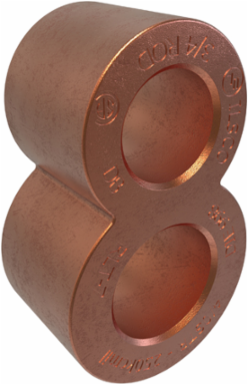

ILSCO RLT-7 Permaground Copper Grounding Connector, Main Conductor Range 250-4/0, Tap Range 250-4/0, Ground Rod Size 3/4in, Rebar Sizes #5-#6, UL, CSA
- MPN: RLT-7
- UPC: 783669715743
- PPN: ILC-RLT-7
CAD
$126.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Copper Grounding Connector, Main Conductor Range 250-4/0, Tap Range 250-4/0, Ground Rod Size 3/4in, Rebar Sizes #5-#6, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 2.191 in | 55.6514 mm |
|---|---|
| Weight | 0.42 lbs |
| Length | 1.344 in | 34.1376 mm |
|---|---|
| Width | 0.875 in | 22.225 mm |
Dimensions
| Height BX (IN) | 4.75 |
|---|---|
| Length (mm) | 34.1376 |
| Width BX (IN) | 7 |
| Height (mm) | 55.6514 |
|---|---|
| Weight BX (LB) | 8.6618 |
| Width (mm) | 22.225 |
Testing Standards
| CSA File Number | LR-5465 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL / CULUS Specification | UL 467 Listed |
| CSA Standard | C22.2 No. 41 |
|---|---|
| UL Control Number | 667P |
| UL File Number | E34440 |
Additional Class Attributes
| Barrel Marking | Hard |
|---|---|
| ILSCOs Die Index Number | 998, 1011 |
| ILSCOs Die Catalog Number | ILD-998 |
|---|
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Bare |
|---|
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 250 kcmil - 4/0 Str |
|---|---|
| Ground Rod Size | 3/4 |
| Conductor Range CU Stranded (Secondary, tap, load) | 250 kcmil - 4/0 Str |
|---|---|
| Rebar Size(s) Main | #6 (3/4), #5 (5/8) |
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-573-3 |
| Carton Quantity Description | STD PACK QTY 20 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366971574 |
Color
| Color | Copper |
|---|
