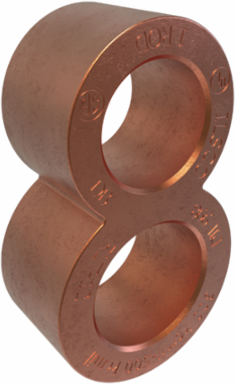

Permaground Copper Grounding Connector, Main Conductor Range 500-300, Tap Range 500-300, Ground Rod Size 1in, UL, CSA
ILSCO

ILSCO RLT-12 Permaground Copper Grounding Connector, Main Conductor Range 500-300, Tap Range 500-300, Ground Rod Size 1in, UL, CSA

  • MPN: RLT-12
  • UPC: 783669003604
  • PPN: ILC-RLT-12

CAD

$107.22

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Permaground Copper Grounding Connector, Main Conductor Range 500-300, Tap Range 500-300, Ground Rod Size 1in, UL, CSA

Documentation & Downloads

Specifications

Key Specifications

Height
2.697 in | 68.5038 mm
Weight
0.547249863665808 lbs
Length1.6 in | 40.64 mm
Width0.875 in | 22.225 mm

Dimensions

Height BX (IN)
3
Length (mm)
40.64
Width BX (IN)
10.5
Height (mm)68.5038
Weight BX (LB)11.202
Width (mm)22.225

Testing Standards

CSA File Number
LR-5465
Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS Specification
UL 467 Listed
CSA StandardC22.2 No. 41
UL Control Number667P
UL File NumberE34440

Additional Class Attributes

Barrel Marking
Hard
ILSCOs Die Index Number
1011, 998
ILSCOs Die Catalog NumberILD-998

Material and Finish

Conductor Material
Copper
Material
Copper
Connector FinishBare

Conductor Ranges

Conductor Range CU Stranded (Primary, run, main, line)
500 kcmil - 300 kcmil
Ground Rod Size
1
Conductor Range CU Stranded (Secondary, tap, load)500 kcmil - 300 kcmil

Additional Technical Specifications

Conductor Type
Stranded

General

Bag Quantity
1
Direct Burial
Yes
NEMA Code
S-573-3
Carton Quantity DescriptionSTD PACK QTY 20
Dual RatedNo
UPC Code78366900360

Color

Color
Copper
