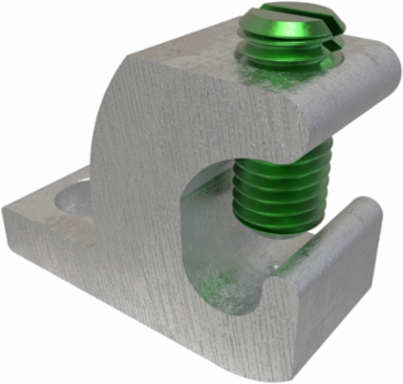

ILSCO GBL-4DBT-14 Permaground Copper Lay-in Groud Lug, Conductor Size 4-14, 1/4in Bolt Size, Slotted Head, Tin Plated
- MPN: GBL-4DBT-14
- UPC: 783669960204
- PPN: ILC-GBL-4DBT-14
CAD
$22.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Permaground Copper Lay-in Groud Lug, Conductor Size 4-14, 1/4in Bolt Size, Slotted Head, Tin Plated
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.825 in | 20.955 mm
- Weight
- 0.06 lbs
Length1.15 in | 29.21 mm
Width0.472 in | 11.9888 mm
Dimensions
- Drive Type Main
- Slotted
- Height (mm)
- 20.955
- Mounting Hole Diameter (IN)
- 0.265
- Tang Length (IN)
- 0.47
- Tang Thickness (IN)
- 0.185
- Tang Width (IN)
- 0.472
- Weight BX (LB)
- 3.9001
- Width (mm)
- 11.9888
Height BX (IN)2.25
Length (mm)29.21
Mounting Hole Diameter (mm)6.731
Tang Length (mm)11.938
Tang Thickness (mm)4.699
Tang Width (mm)11.9888
Width BX (IN)5
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 2703 Listed, UL 467 Listed
CSA StandardC22.2 No. 65-03
UL Control Number667P
UL File NumberE354420 Vol. 2, E34440
Additional Class Attributes
- Connection
- Mechanical
- Mounting Kit Hardware Part #
- GBL-MH3
- Number of Mounting Holes
- 1
Mounting Hole TypeThru
Number of Conductors1
Number of Ports / Wireways1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Material
- Stainless steel
Connector FinishTin
Wire Binding Hardware FinishNickel Strick, Zinc, Green Dye
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
Conductor Range CU Stranded (Primary, run, main, line)4 Str - 14 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedNo
UPC Code78366996020
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/4
- Wire Binding Screw Size
- 1/4
Number of Wire Binding Screws per Port1
Wire Binding Torque4 - 6 AWG = 35, 8 AWG = 25, 10 - 18 AWG = 20, 2 AWG = 40
