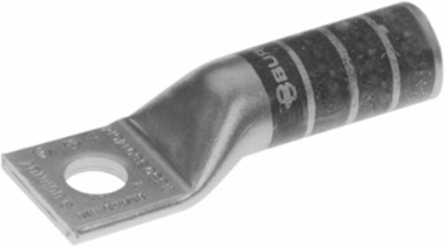

Burndy YA29TC38 HYLUGTM Terminal Connector, 250 kcmil, Copper, 3/8 Inch Bolt, Tin Plated
- MPN: YA29TC38
- UPC: 781810145470
- PPN: BUR-25004694
CAD
$58.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Tubing Hylug, 250 kcmil, 250 Navy, 3/8 IN Bolt, 16 Index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.62 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Hole Size inch
- 0.40 in
- Dimension - L Length Overall mm
- 76 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 1.10 in
- Dimension - Z inch
- 0.42 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - D inch0.83 in
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch3.01 in
Dimension - Outside Diameter inch0.75 in
Dimension - Strip Length inch1-11/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 250 (61) Navy
- Conductor - Copper Str Size
- 250 kcmil
Conductor - Copper Str Navy Size Range250 (61) Navy
Conductor - MaterialCopper
General
- Color Code
- Yellow
- Die Index
- 16
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810145470
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Temperature Rating194
TypeLong Barrel, Tin Plated
UPC 12 Digit7818101454700
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 10
