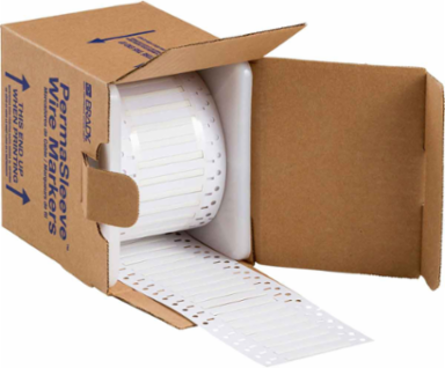

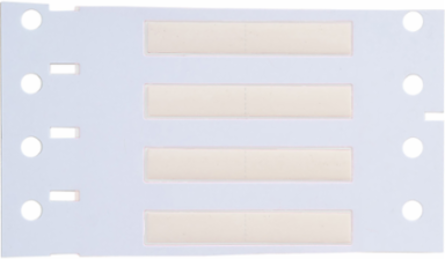

Brady LSZH-094-150-WT-S2 PermaSleeve Low Smoke Zero Halogen Wire Marking Sleeves, 0.094 " Dia x 0.75" W
- MPN: LSZH-094-150-WT-S2
- UPC: 754473549350
- PPN: BRD-LSZH-094-150-WT-S2
- UNSPSC: 55121612
CAD
$498.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Bulk Part
- Not a Bulk Part
- Enables Industry Compliance
- BS6853 (1999) vehicle category 1a; EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3
- For Use with Printer
- BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Heat Shrink Tubing
- Printable Sides
- Single-Side Printable
- Quantity per Roll
- 1000
- Recommended Ribbon
- IP-R6007; R6007
- Sleeve Slits
- Yes
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
- SAP B-Number
- B-7641
- Diameter as Supplied (mm/cm/m)
- 2.4 mm
- Dimensions (Metric)
- 4.6 mm H
- Height (in/ft/yd)
- 0.182 in
- Maximum Service Temperature °C
- 105 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.08 in
- Maximum Wire Gauge
- 20 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 1.2 mm
- Recovered Diameter (in/ft/yd)
- 0.047 in
- Recovered Wall Thickness (in/ft/yd)
- 0.021 in
- Roll Width (mm/cm/m)
- 38.1 mm
- Sleeve Size (mm/cm/m)
- 2.4 mm Dia x 19.1 mm W
- Sleeve Width (mm/cm/m)
- 19.1 mm
- Web Width (in/ft/yd)
- 3.49 in
- Wire Gauge Range
- 24 AWG to 20 AWG
Brand NameBrady®
ColorWhite
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Quantity per Row2
Shrink Ratio2:1
Suggested Ribbon SeriesR6000 Halogen Free; R6600
Brady Material NumberB-7641
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)0.094 in
Dimensions0.182 in H
Dimensions 20.182 in H
Height (mm/cm/m)4.6 mm
Maximum Service Temperature °F221 °F
Maximum Wire Diameter (mm/cm/m)2 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.047 in
Minimum Wire Gauge24 AWG
Recovered Diameter (mm/cm/m)1.2 mm
Roll Width (in/ft/yd)1.5 in
Sleeve Size (in/ft/yd)0.094 in Dia x 0.75 in W
Sleeve Width (in/ft/yd)0.75 in
Vertical Repeat0.5 in
Wire Diameter Range0.047 in to 0.08 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
