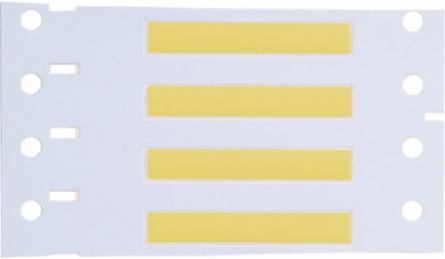

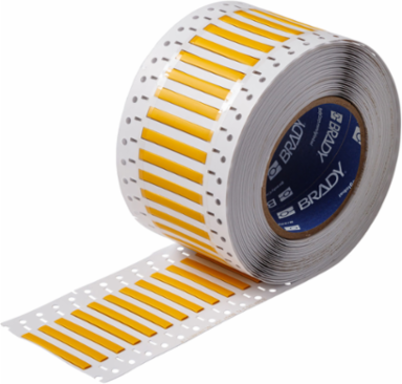

Brady PS-094-150-YL PermaSleeve Polyolefin Wire Marking Sleeves, 0.094" Dia x 1.5" W, Yellow
Brady PS-094-150-YL PermaSleeve Polyolefin Wire Marking Sleeves, 0.094" Dia x 1.5" W, Yellow
- MPN: PS-094-150-YL
- UPC: 754473923808
- PPN: BRD-PS-094-150-YL
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2151.39/ EA
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- For Use with Printer
- BBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Single-Side Printable
- Quantity per Roll
- 2500
- Recommended Ribbon
- IP-R6606; R6606
- Suggested Ribbon Series
- R4300; R4502S; R5000; R6600; R6700
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (mm/cm/m)
- 2.4 mm
- Dimensions (Metric)
- 4.6 mm H
- Height (in/ft/yd)
- 0.182 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.08 in
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.023 in
- Recovered Diameter (in/ft/yd)
- 0.023 in
- Roll Width (in/ft/yd)
- 1.5 in
- Sleeve Size (in/ft/yd)
- 0.094 in Dia x 1.5 in W
- Sleeve Width (in/ft/yd)
- 1.5 in
- Vertical Repeat
- 0.5 in
Brand NameBrady®
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Quantity per Row1
Shrink Ratio3:1
Total Quantity2500
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)0.094 in
Dimensions0.182 in H
Dimensions 20.182 in H
Height (mm/cm/m)4.6 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)2 mm
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)0.6 mm
Recovered Diameter (mm/cm/m)0.6 mm
Roll Width (mm/cm/m)38.1 mm
Sleeve Size (mm/cm/m)2.4 mm Dia x 38.1 mm W
Sleeve Width (mm/cm/m)38.1 mm
Wire Diameter Range0.023 in to 0.08 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliant
- No
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
EU RoHS ComplianceNot Applicable
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
