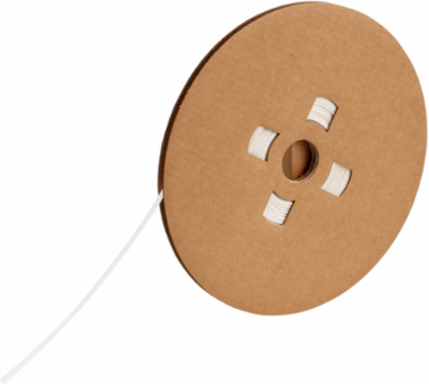

Brady PS-C-094-WT-J PermaSleeve Polyolefin Wire Marking Sleeves, 0.094" Dia x 175' L, White
- MPN: PS-C-094-WT-J
- UPC: 754473897512
- PPN: BRD-PS-C-094-WT-J
- UNSPSC: 55121612
CAD
$330.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer or dot matrix printing and is ideal for use in wire identification.
Documentation & Downloads
Specifications
Key Specifications
| Applications | Wire and Cable Labeling |
|---|---|
| Color | White |
| Finish | Matte |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Shrink Ratio | 3:1 |
| Trade Name | PermaSleeve® |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable |
| SAP B-Number | B-342 |
| Diameter as Supplied (mm/cm/m) | 2.4 mm |
| Dimensions (Metric) | 4.6 mm H |
| Height (in/ft/yd) | 0.182 in |
| Maximum Service Temperature °C | 135 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.08 in |
| Maximum Wire Gauge | 20 AWG |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 0.6 mm |
| Recovered Diameter (in/ft/yd) | 0.023 in |
| Recovered Wall Thickness (in/ft/yd) | 0.024 in |
| Roll Length (in/ft/yd) | 175 ft |
| Sleeve Size (in/ft/yd) | 0.094 in Dia x 175 ft L |
| Wire Diameter Range | 0.023 in to 0.08 in |
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | Method 215; Method 215K; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202; MIL-STD-202F; RoHS Compliant; UL 224 |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer |
| Primary Noun, Basic Function | Heat Shrink Tubing |
| Printable Sides | Single-Side Printable |
| Recommended Ribbon | IP-R6606; R6606 |
| Suggested Ribbon Series | R4300; R5000; R6600 |
| Brady Material Number | B-342 |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant; Smear-Resistant |
| Diameter as Supplied (in/ft/yd) | 0.094 in |
| Dimensions | 0.182 in H |
| Dimensions 2 | 0.182 in H |
| Height (mm/cm/m) | 4.6 mm |
| Maximum Service Temperature °F | 275 °F |
| Maximum Wire Diameter (mm/cm/m) | 2 mm |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.023 in |
| Minimum Wire Gauge | 28 AWG |
| Recovered Diameter (mm/cm/m) | 0.6 mm |
| Recovered Wall Thickness (mm/cm/m) | 0.61 mm |
| Roll Length (mm/cm/m) | 53.34 m |
| Sleeve Size (mm/cm/m) | 2.4 mm Dia x 53.34 m L |
| Wire Gauge Range | 28 AWG to 20 AWG |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer Causing Chemical | Antimony Trioxide |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
