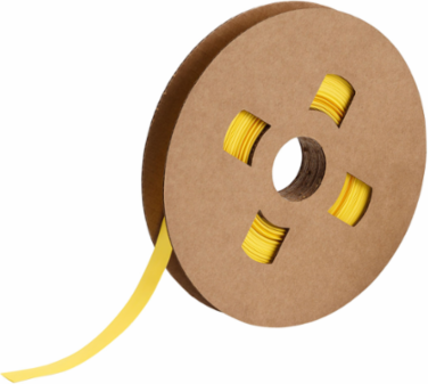

Brady PS-C-750-YL PermaSleeve Polyolefin Wire Marking Sleeves, 0.75" Dia x 50' L, Yellow
- MPN: PS-C-750-YL
- UPC: 754473897635
- PPN: BRD-PS-C-750-YL
- UNSPSC: 55121612
CAD
$315.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer or dot matrix printing and is ideal for use in wire identification.
Documentation & Downloads
Specifications
Key Specifications
| Applications | Wire and Cable Labeling |
|---|---|
| Color | Yellow |
| Finish | Matte |
| Label/Media Format | Roll |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Shrink Ratio | 3:1 |
| Trade Name | PermaSleeve® |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable |
| SAP B-Number | B-342 |
| Diameter as Supplied (mm/cm/m) | 19.1 mm |
| Dimensions (Metric) | 31.8 mm H |
| Height (in/ft/yd) | 1.25 in |
| Maximum Service Temperature °C | 135 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.7 in |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.25 in |
| Minimum Wire Gauge | 6 AWG |
| Recovered Diameter (mm/cm/m) | 6.4 mm |
| Recovered Wall Thickness (mm/cm/m) | 0.64 mm |
| Roll Length (mm/cm/m) | 15.24 m |
| Sleeve Size (mm/cm/m) | 19.1 mm Dia x 15.24 m L |
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | Method 215; Method 215K; MIL-DTL-23053/5 Class 1; MIL-M-81531; MIL-STD-202; MIL-STD-202F; RoHS Compliant; UL 224 |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer |
| Primary Noun, Basic Function | Heat Shrink Tubing |
| Printable Sides | Single-Side Printable |
| Recommended Ribbon | IP-R6606; R6606 |
| Suggested Ribbon Series | R4300; R5000; R6600 |
| Brady Material Number | B-342 |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant; Smear-Resistant |
| Diameter as Supplied (in/ft/yd) | 0.75 in |
| Dimensions | 1.25 in H |
| Dimensions 2 | 1.25 in H |
| Height (mm/cm/m) | 31.8 mm |
| Maximum Service Temperature °F | 275 °F |
| Maximum Wire Diameter (mm/cm/m) | 17.8 mm |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 6.4 mm |
| Recovered Diameter (in/ft/yd) | 0.25 in |
| Recovered Wall Thickness (in/ft/yd) | 0.025 in |
| Roll Length (in/ft/yd) | 50 ft |
| Sleeve Size (in/ft/yd) | 0.75 in Dia x 50 ft L |
| Wire Diameter Range | 0.25 in to 0.7 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| Contains 3TG Mineral | Not Applicable |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
